| 技術(shù)特性 | |
| 額定電壓 | 50V AC，DC |
| 額定電流 | 1.25A AC, DC |
| 接觸電阻 | 50m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94V-0 |
| 端子 | 磷青銅,鍍錫 |

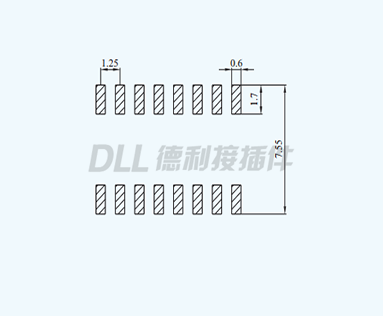

參考圖紙
Rosh
MSDS

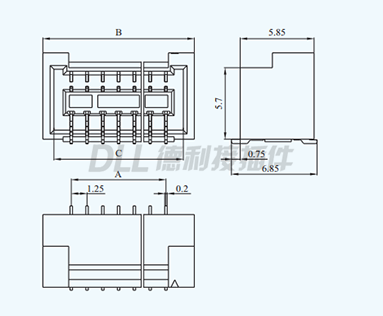

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||

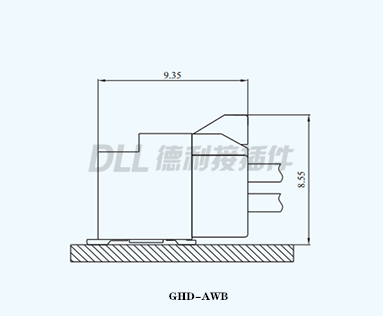

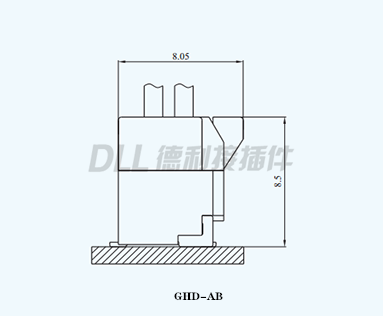

| 2x2 | GHD-4AB/GHD-4AWB | 1.25 | 5.75 | 4.00 |
| 2x3 | GHD-6AB/GHD-6AWB | 2.50 | 7.00 | 5.25 |
| 2x4 | GHD-8AB/GHD-8AWB | 3.75 | 8.25 | 6.50 |
| 2x5 | GHD-10AB/GHD-10AWB | 5.00 | 9.50 | 7.75 |
| 2x6 | GHD-12AB/GHD-12AWB | 6.25 | 10.75 | 9.00 |
| 2x7 | GHD-14AB/GHD-14AWB | 7.50 | 12.00 | 10.25 |
| 2x8 | GHD-16AB/GHD-16AWB | 8.75 | 13.25 | 11.50 |
| 2x9 | GHD-18AB/GHD-18AWB | 10.00 | 14.50 | 12.75 |
| 2x10 | GHD-20AB/GHD-20AWB | 11.25 | 15.75 | 14.00 |
| 2x11 | GHD-22AB/GHD-22AWB | 12.50 | 17.00 | 15.25 |
| 2x12 | GHD-24AB/GHD-24AWB | 13.75 | 18.25 | 16.50 |
| 2x13 | GHD-26AB/GHD-26AWB | 15.00 | 19.50 | 17.75 |
| 2x14 |
GHD-28AB/GHD-28AWB |
16.25 | 20.75 | 19.00 |
| 2x15 |
GHD-30AB/GHD-30AWB |
17.50 | 22.00 | 20.25 |
| 2x16 |
GHD-32AB/GHD-32AWB |
18.75 | 23.25 | 21.50 |
| ~ |
~ |
~ | ~ | ~ |
| 2x20 |
GHD-40AB/GHD-40AWB |
23.75 | 28.25 | 26.50 |

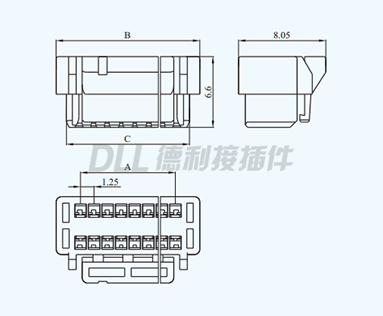

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2x2 | GHD-4Y | 1.25 | 5.75 | 3.85 |
| 2x3 | GHD-6Y | 2.50 | 7.00 | 5.10 |
| 2x4 | GHD-8Y | 3.75 | 8.25 | 6.35 |
| 2x5 | GHD-10Y | 5.00 | 9.50 | 7.60 |
| 2x6 | GHD-12Y | 6.25 | 10.75 | 8.85 |
| 2x7 | GHD-14Y | 7.50 | 12.00 | 10.10 |
| 2x8 | GHD-16Y | 8.75 | 13.25 | 11.35 |
| 2x9 | GHD-18Y | 10.00 | 14.50 | 12.60 |
| 2x10 | GHD-20Y | 11.25 | 15.75 | 13.85 |
| 2x11 | GHD-22Y | 12.50 | 17.00 | 15.10 |
|
2x12 |
GHD-24Y | 13.75 | 18.25 | 16.35 |
| 2x13 | GHD-26Y | 15.00 | 19.50 | 17.60 |
| 2x14 |
GHD-28Y |
16.25 | 20.75 | 18.85 |
| 2x15 |
GHD-30Y |
17.50 | 22.00 | 20.10 |
| 2x16 |
GHD-32Y |
18.75 | 23.25 | 21.35 |
| ~ | ~ | ~ | ~ | ~ |
| 2x20 |
ZHD-40Y |
23.75 | 28.25 | 26.35 |
