| 技術特性 | |
| 額定電壓 | 125V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | PBTUL94-V0(2) |
| SMT針座 | LCP UL94V-0 |

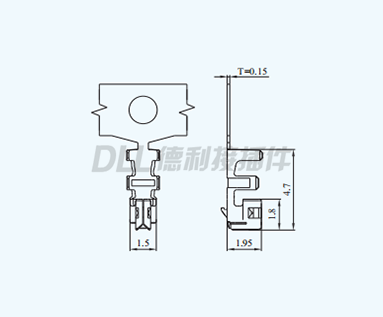

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

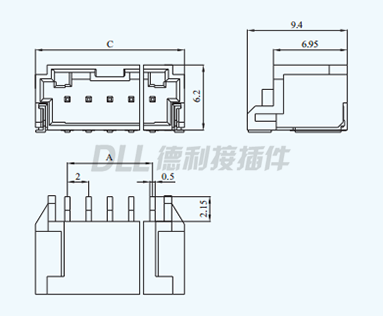

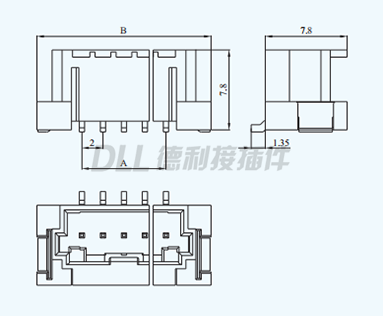

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | PHM-2AB/PHM-2AWB | 2.00 | 10.60 | 8.00 |
| 3 | PHM-3AB/PHM-3AWB | 4.00 | 12.60 | 10.00 |
| 4 | PHM-4AB/PHM-4AWB | 6.00 | 14.60 | 12.00 |
| 5 | PHM-5AB/PHM-5AWB | 8.00 | 16.60 | 14.00 |
| 6 | PHM-6AB/PHM-6AWB | 10.00 | 18.60 | 16.00 |
| 7 | PHM-7AB/PHM-7AWB |
12.00 |
20.60 | 18.00 |
| 8 | PHM-8AB/PHM-8AWB | 14.00 | 22.60 | 20.00 |
| 9 |
PHM-9AB/PHM-9AWB |
16.00 | 24.60 | 22.00 |
| 10 | PHM-10AB/PHM-10AWB | 18.00 | 26.60 | 24.00 |
| 11 | PHM-11AB/PHM-11AWB | 20.00 | 28.60 | 26.00 |
| 12 | PHM-12AB/PHM-12AWB | 22.00 | 30.60 | 28.00 |
| 13 | PHM-13AB/PHM-13AWB | 24.00 | 32.60 | 30.00 |
| 14 |
PHM-14AB/PHM-14AWB |
26.00 | 34.60 | 32.00 |
| 15 |
PHM-15AB/PHM-15AWB |
28.00 | 36.60 | 34.00 |

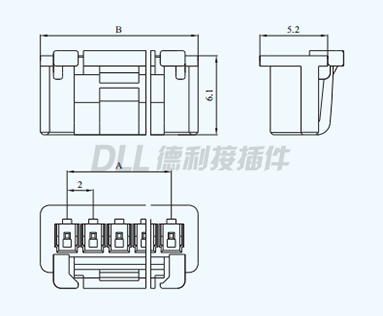

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | PHM-2Y | 2.00 | 6.10 |
| 3 | PHM-3Y | 4.00 | 8.10 |
| 4 | PHM-4Y | 6.00 | 10.10 |
| 5 | PHM-5Y | 8.00 | 12.10 |
| 6 | PHM-6Y | 10.00 | 14.10 |
| 7 | PHM-7Y | 12.00 | 16.10 |
| 8 | PHM-8Y | 14.00 | 18.10 |
| 9 | PHM-9Y | 16.00 | 20.10 |
| 10 | PHM-10Y | 18.00 | 22.10 |
| 11 | PHM-11Y | 20.00 | 24.10 |
| 12 | PHM-12Y | 22.00 | 26.10 |
| 13 | PHM-13Y | 24.00 | 28.10 |
| 14 |
PHM-14Y |
26.00 | 30.10 |
| 15 |
PHM-15Y |
28.00 | 32.10 |
