| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 7A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94V-0 |

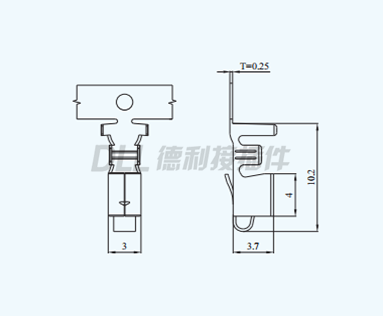

| 端子 | 磷青銅,鍍錫 |

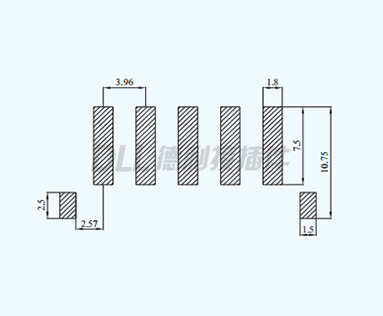

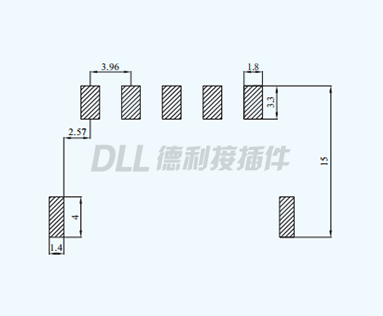

參考圖紙
Rosh
MSDS

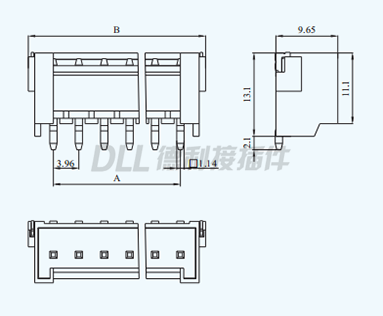

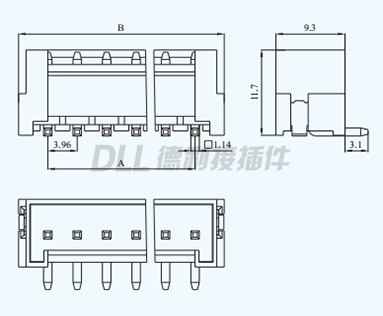

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 |

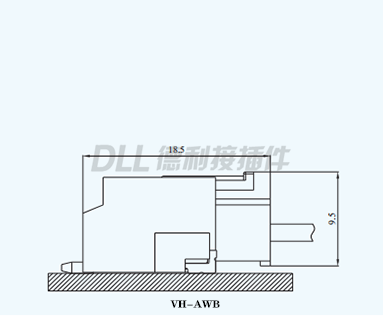

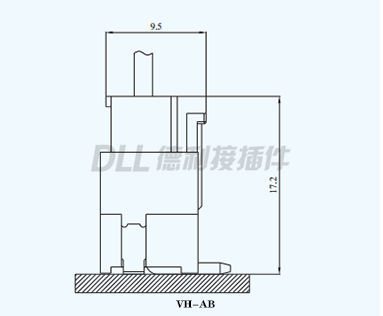

VH-2AB/VH-2AWB |
3.96 |
11.88 |
| 3 | VH-3AB/VH-3AWB | 7.92 | 15.84 |
| 4 | VH-4AB/VH-4AWB | 11.88 | 19.80 |
| 5 | VH-5AB/VH-5AWB | 15.84 | 23.76 |
| 6 | VH-6AB/VH-6AWB | 19.80 | 27.72 |
| 7 | VH-7AB/VH-7AWB | 23.76 |
31.68 |
| 8 | VH-8AB/VH-8AWB | 27.72 | 35.64 |
| 9 |
VH-9AB/VH-9AWB |
31.68 | 39.60 |
| 10 | VH-10AB/VH-10AWB | 35.64 | 43.56 |
| 11 |
VH-11AB/VH-11AWB |
39.60 | 47.52 |
| 12 | VH-12AB/VH-12AWB | 43.56 | 51.48 |
|
13 |
VH-13AB/VH-13AWB |
47.52 |
55.44 |
|
14 |
VH-14AB/VH-14AWB |
51.48 |
59.40 |
|
15 |
VH-15AB/VH-15AWB |
55.44 |
63.36 |

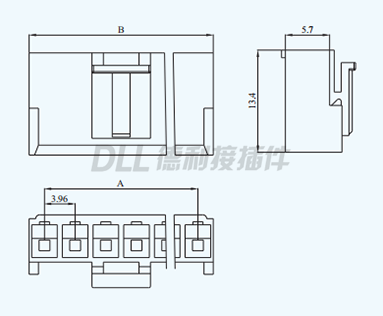

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 |
VH-2Y |
3.96 |
7.92 |
| 3 | VH-3Y | 7.92 | 11.88 |
| 4 | VH-4Y | 11.88 | 15.84 |
| 5 | VH-5Y | 15.84 | 19.80 |
| 6 | VH-6Y | 19.80 | 23.76 |
| 7 | VH-7Y | 23.76 |
27.72 |
| 8 | VH-8Y | 27.72 | 31.68 |
| 9 |
VH-9Y |
31.68 | 35.64 |
| 10 | VH-10Y | 35.64 | 39.60 |
| 11 |
VH-11Y |
39.60 | 43.56 |
| 12 | VH-12Y | 43.56 | 47.52 |
|
13 |
VH-13Y |
47.52 |
51.48 |
|
14 |
VH-14Y |
51.48 |
55.44 |
|
15 |
VH-15Y |
55.44 |
59.40 |
