| 技術特性 | |
| 額定電壓 | 125V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94V-0（2） |
| SMT針座 | LCP UL94V-0 |

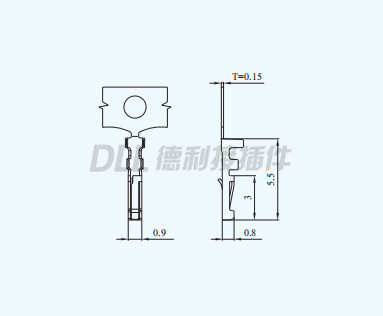

| 端子 | 磷青銅,鍍錫 |

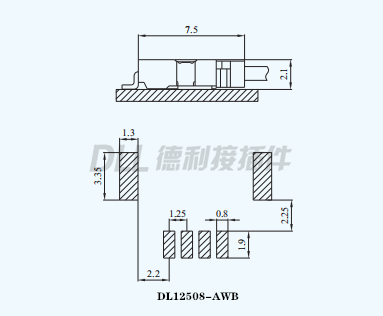

參考圖紙
Rosh
MSDS
注：以上圖紙僅供參考,詳情請咨詢我司銷售人員

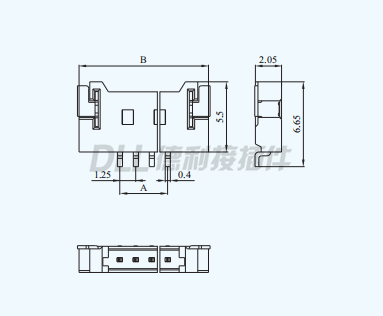

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2 | DL12508-2AWB | 1.25 | 7.65 | |
| 3 | DL12508-3AWB | 2.50 | 8.90 | |
| 4 | DL12508-4AWB | 3.75 | 10.15 | |
| 5 | DL12508-5AWB | 5.00 | 11.40 | |
| 6 | DL12508-6AWB | 6.25 | 12.65 | |
| 7 | DL12508-7AWB | 7.50 | 13.90 | |
| 8 |
DL12508-8AWB |
8.75 | 15.15 | |
| 9 | DL12508-9AWB | 10.00 | 16.40 | |
| 10 | DL12508-10AWB | 11.25 | 17.65 | |
| 11 | DL12508-11AWB | 12.50 | 18.90 | |
| 12 | DL12508-12AWB | 13.75 | 20.15 | |
| 13 | DL12508-13AWB | 15.00 | 21.40 | |
|
14 |
DL12508-14AWB |
16.25 |
22.65 |
|
|
15 |
DL12508-15AWB |
17.50 |
23.90 |
|
| ~ | ~ | ~ | ~ | |
| 20 | DL12508-20AWB | 23.75 | 30.15 | |

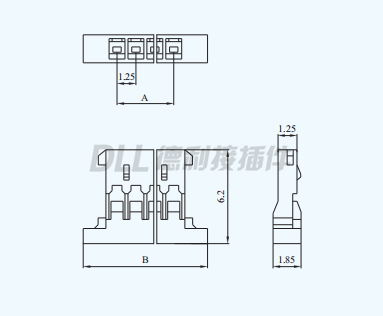

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2 |
DL12508-2Y |
1.25 | 5.72 | |
| 3 |
DL12508-3Y |
2.50 | 6.97 | |
| 4 |
DL12508-4Y |
3.75 | 8.22 | |
| 5 |
DL12508-5Y |
5.00 | 9.47 | |
| 6 |
DL12508-6Y |
6.25 | 10.72 | |
| 7 |
DL12508-7Y |
7.50 | 11.97 | |
| 8 |
DL12508-8Y |
8.75 | 13.22 | |
| 9 |
DL12508-9Y |
10.00 | 14.47 | |
| 10 |
DL12508-10Y |
11.25 | 15.72 | |
| 11 |
DL12508-11Y |
12.50 | 16.97 | |
| 12 |
DL12508-12Y |
13.75 | 18.22 | |
| 13 |
DL12508-13Y |
15.00 | 19.47 | |
|
14 |
DL12508-14Y |
16.25 |
20.72 |
|
|
15 |
DL12508-15Y |
17.50 |
21.97 |
|
| ~ |
~ |
~ | ~ | |
| 20 |
DL12508-20Y |
23.75 | 28.22 | |
