| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 2.5A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | LCP UL94V-0 |

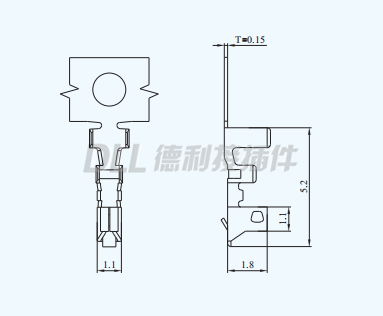

| 端子 | 磷青銅,鍍錫 |

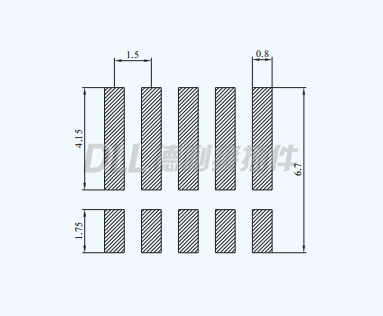

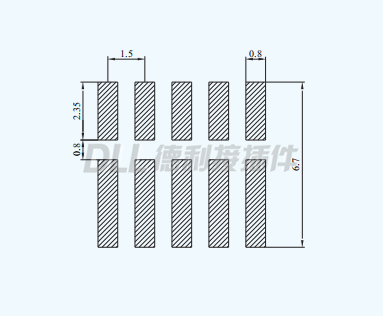

參考圖紙
Rosh
MSDS

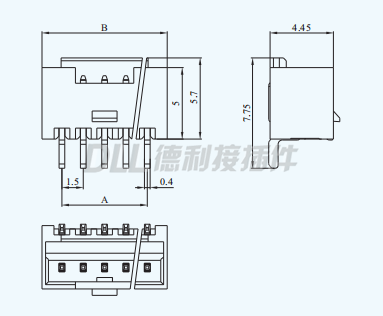

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 |

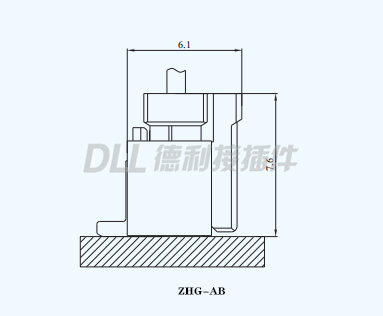

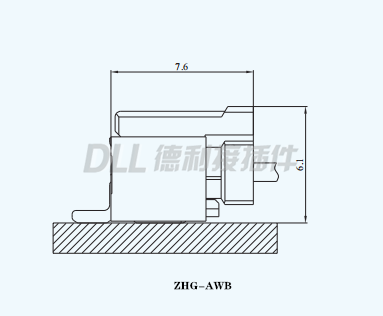

ZHG-2AB/ZHG-2AWB |
1.50 |
4.30 |
| 3 | ZHG-3AB/ZHG-3AWB | 3.00 |
5.80 |
| 4 | ZHG-4AB/ZHG-4AWB | 4.50 |
7.30 |
| 5 | ZHG-5AB/ZHG-5AWB | 6.00 |
8.80 |
| 6 | ZHG-6AB/ZHG-6AWB | 7.50 |
10.30 |
| 7 | ZHG-7AB/ZHG-7AWB | 9.00 |
11.80 |
| 8 | ZHG-8AB/ZHG-8AWB | 10.50 |
13.30 |
| 9 | ZHG-9AB/ZHG-9AWB | 12.00 |
14.80 |
| 10 | ZHG-10AB/ZHG-10AWB | 13.50 |
16.30 |
| 11 | ZHG-11AB/ZHG-11AWB | 15.00 | 17.80 |
| 12 | ZHG-12AB/ZHG-12AWB | 16.50 |
19.30 |
| 13 | ZHG-13AB/ZHG-13AWB | 18.00 |
20.80 |
| 14 | ZHG-14AB/ZHG-14AWB | 19.50 |
22.30 |
| 15 | ZHG-15AB/ZHG-15AWB |
21.00 |
23.80 |

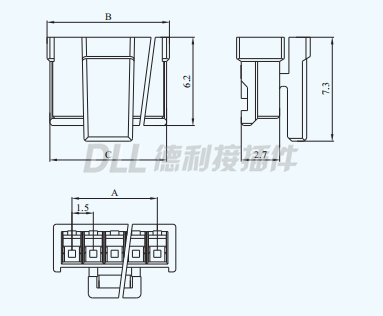

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | ZHG-2Y | 1.50 | 4.10 | 3.70 |
| 3 | ZHG-3Y | 3.00 |
5.60 |
5.20 |
| 4 | ZHG-4Y | 4.50 | 7.10 |
6.70 |
| 5 | ZHG-5Y | 6.00 |
8.60 |
8.20 |
| 6 | ZHG-6Y |
7.50 |
10.10 |
9.70 |
| 7 | ZHG-7Y |
9.00 |
11.60 |
11.20 |
| 8 | ZHG-8Y |
10.50 |
13.10 |
12.70 |
| 9 | ZHG-9Y |
12.00 |
14.60 |
14.20 |
| 10 | ZHG-10Y |
13.50 |
16.10 | 15.70 |
| 11 | ZHG-11Y | 15.00 | 17.60 | 17.20 |
| 12 | ZHG-12Y | 16.50 | 19.10 | 18.70 |
| 13 | ZHG-13Y | 18.00 |
20.60 |
20.20 |
| 14 | ZHG-14Y | 19.50 |
22.10 |
21.70 |
| 15 | ZHG-15Y |
21.00 |
23.60 |
23.20 |
