| 技術特性 | |
| 額定電壓 | 50V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 250V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |
| 端子 | 磷青銅,鍍錫 |

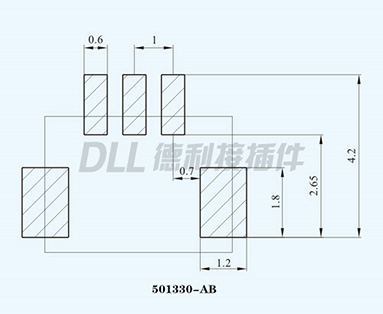

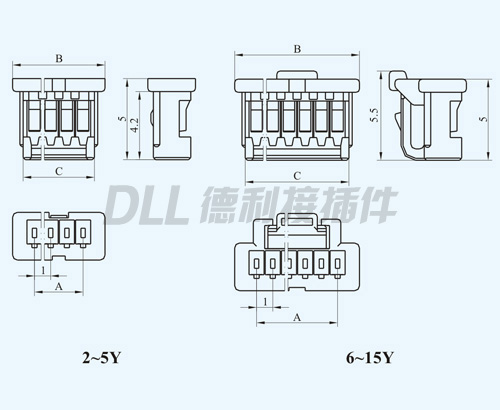

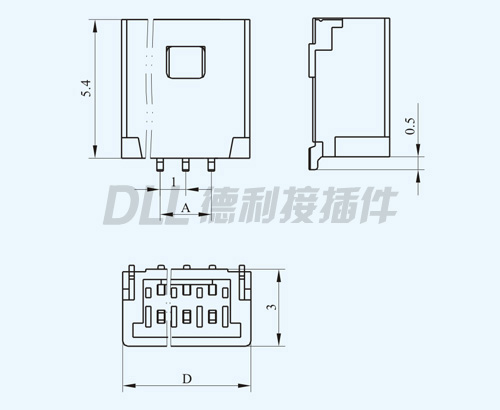

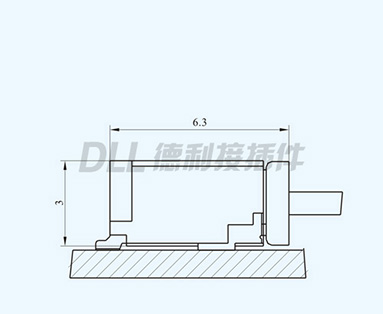

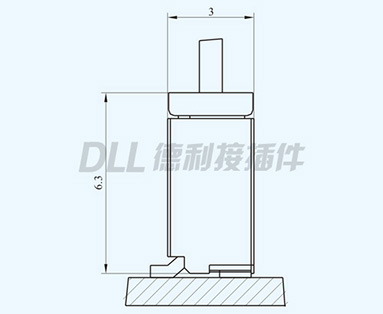

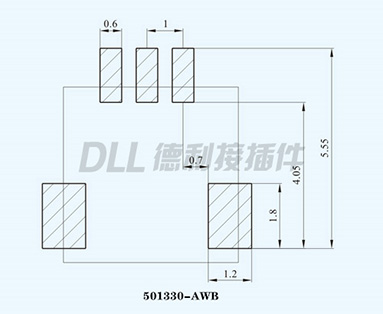

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | ||||
| A | B | C | D | |||
| 2 | 501330-2Y | 501330-2AB/501330-2AWB | 1.0 | 3.7 | 2.4 | 4.0 |
| 3 | 501330-3Y | 501330-3AB/501330-3AWB | 2.0 | 4.7 | 3.4 | 5.0 |
| 4 | 501330-4Y | 501330-4AB/501330-4AWB | 3.0 | 5.7 | 4.4 | 6.0 |
| 5 | 501330-5Y | 501330-5AB/501330-5AWB | 4.0 | 6.7 | 5.4 | 7.0 |
| 6 | 501330-6Y | 501330-6AB/501330-6AWB | 5.0 | 7.7 | 6.4 | 8.0 |
| 7 | 501330-7Y | 501330-7AB/501330-7AWB | 6.0 | 8.7 | 7.4 | 9.0 |
| 8 | 501330-8Y | 501330-8AB/501330-8AWB | 7.0 | 9.7 | 8.4 | 10.0 |
| 9 | 501330-9Y | 501330-9AB/501330-9AWB | 8.0 | 10.7 | 9.4 | 11.0 |
| 10 | 501330-10Y | 501330-10AB/501330-10AWB | 9.0 | 11.7 | 10.4 | 12.0 |
| 11 | 501330-11Y | 501330-11AB/501330-11AWB | 10.0 | 12.7 | 11.4 | 13.0 |
| 12 | 501330-12Y | 501330-12AB/501330-12AWB | 11.0 | 13.7 | 12.4 | 14.0 |
| 13 | 501330-13Y | 501330-13AB/501330-13AWB | 12.0 | 14.7 | 13.4 | 15.0 |
| 14 | 501330-14Y | 501330-14AB/501330-14AWB | 13.0 | 15.7 | 14.4 | 16.0 |
| 15 | 501330-15Y | 501330-15AB/501330-15AWB | 14.0 | 16.7 | 15.4 | 17.0 |
