| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 7A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#22~#16 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍 UL94-V0(2) |

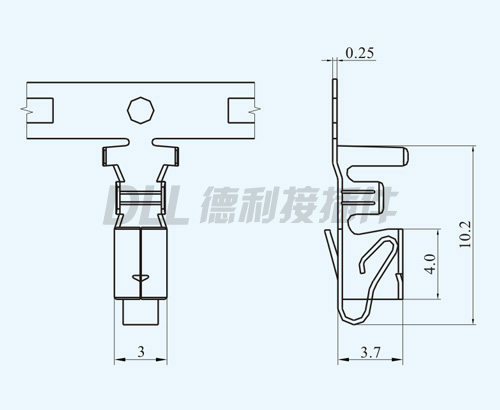

| 端子 | 磷青銅,鍍錫 |

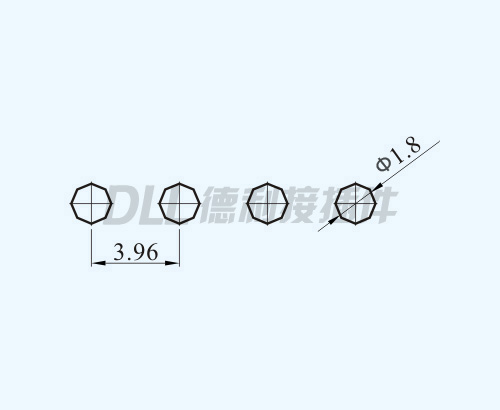

參考圖紙
Rosh
MSDS

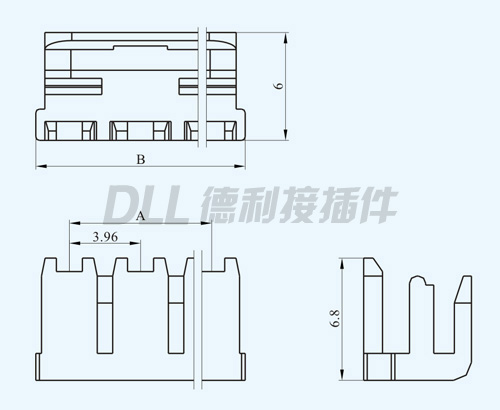

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | VHB-2Y | 3.96 | 7.92 |
| 3 | VHB-3Y | 7.92 | 11.88 |
| 4 | VHB-4Y | 11.88 | 15.84 |
| 5 | VHB-5Y | 15.84 | 19.80 |
| 6 | VHB-6Y | 19.80 | 23.76 |
| 7 | VHB-7Y | 23.76 | 27.72 |
| 8 | VHB-8Y | 27.72 | 31.68 |
| 9 | VHB-9Y | 31.68 | 35.64 |
| 10 | VHB-10Y | 35.64 | 39.60 |
| 11 | VHB-11Y | 39.60 | 43.56 |
| 12 | VHB-12Y | 43.56 | 47.52 |
| 13 | VHB-13Y | 47.52 | 51.48 |
| 14 | VHB-14Y | 51.48 | 55.44 |
| 15 | VHB-15Y | 55.44 | 59.40 |

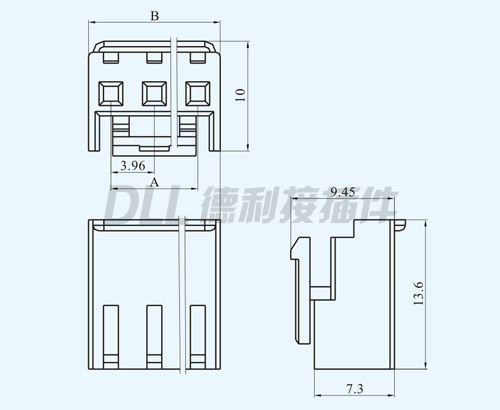

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | VH-2A/VH-2AW/VH-2AWT | 3.96 | 7.92 |
| 3 | VH-3A/VH-3AW/VH-3AWT | 7.92 | 11.88 |
| 4 | VH-4A/VH-4AW/VH-4AWT | 11.88 | 15.84 |
| 5 | VH-5A/VH-5AW/VH-5AWT | 15.84 | 19.80 |
| 6 | VH-6A/VH-6AW/VH-6AWT | 19.80 | 23.76 |
| 7 | VH-7A/VH-7AW/VH-7AWT | 23.76 | 27.72 |
| 8 | VH-8A/VH-8AW/VH-8AWT | 27.72 | 31.68 |
| 9 | VH-9A/VH-9AW/VH-9AWT | 31.68 | 35.64 |
| 10 | VH-10A/VH-10AW/VH-10AWT | 35.64 | 39.60 |
| 11 | VH-11A/VH-11AW/VH-11AWT | 39.60 | 43.56 |
| 12 | VH-12A/VH-12AW/VH-12AWT | 43.56 | 47.52 |
| 13 | VH-13A/VH-13AW/VH-13AWT | 47.52 | 51.48 |
| 14 | VH-14A/VH-14AW/VH-14AWT | 51.48 | 55.44 |
| 15 | VH-15A/VH-15AW/VH-15AWT | 55.44 | 59.40 |

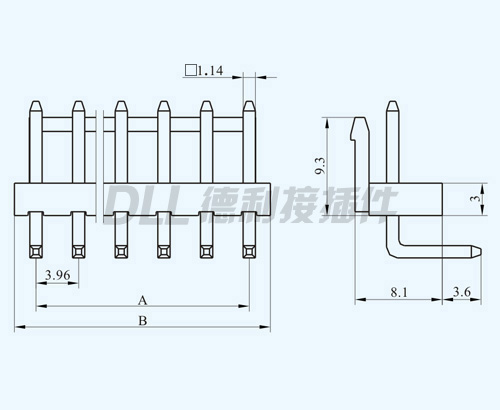

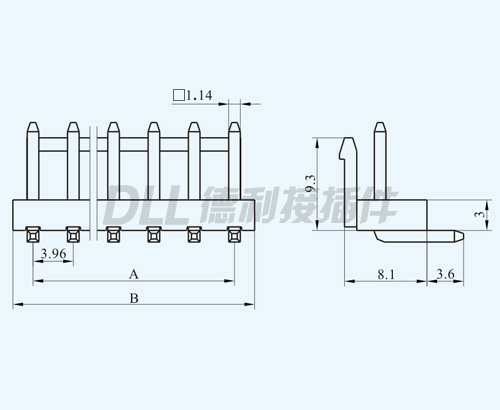

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | VHB-2S | 3.96 | 7.69 |
| 3 | VHB-3S | 7.92 | 11.65 |
| 4 | VHB-4S | 11.88 | 15.61 |
| 5 | VHB-5S | 15.84 | 19.57 |
| 6 | VHB-6S | 19.80 | 23.53 |
| 7 | VHB-7S | 23.76 | 27.49 |
| 8 | VHB-8S | 27.72 | 31.45 |
| 9 | VHB-9S | 31.68 | 35.41 |
| 10 | VHB-10S | 35.64 | 39.37 |
| 11 | VHB-11S | 39.60 | 43.33 |
| 12 | VHB-12S | 43.56 | 47.29 |
| 13 | VHB-13S | 47.52 | 51.25 |
| 14 | VHB-14S | 51.48 | 55.21 |
| 15 | VHB-15S | 55.44 | 59.17 |
