| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 7A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍 UL94-V0(2) |

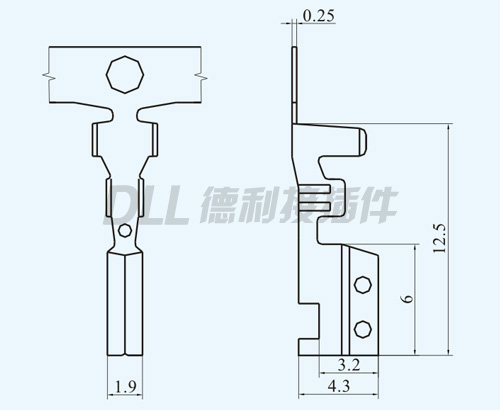

| 端子 | 磷青銅,鍍錫 |

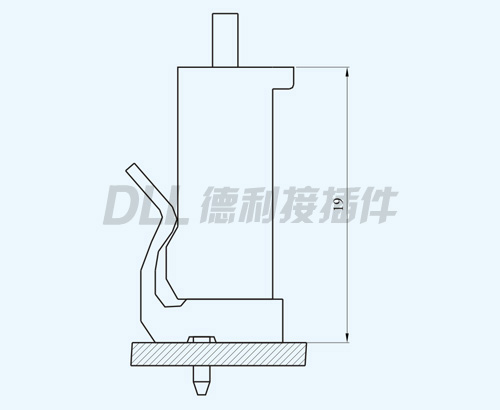

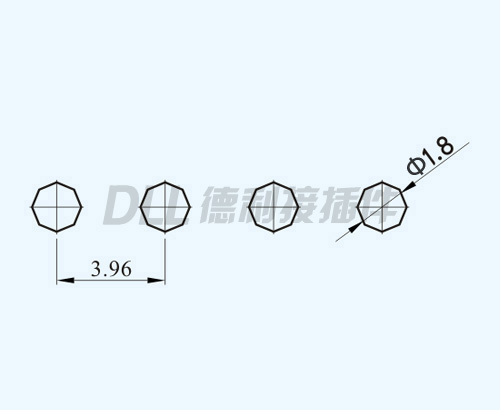

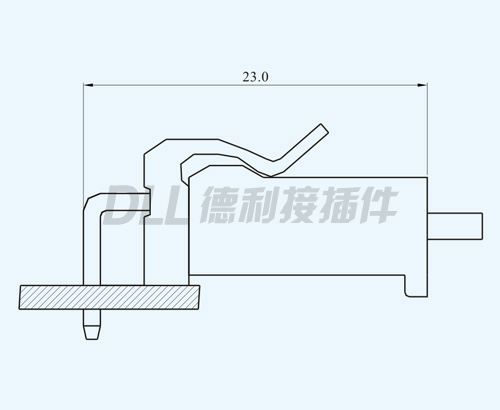

參考圖紙
Rosh
MSDS

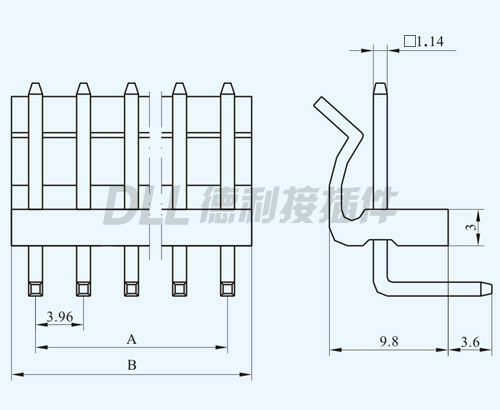

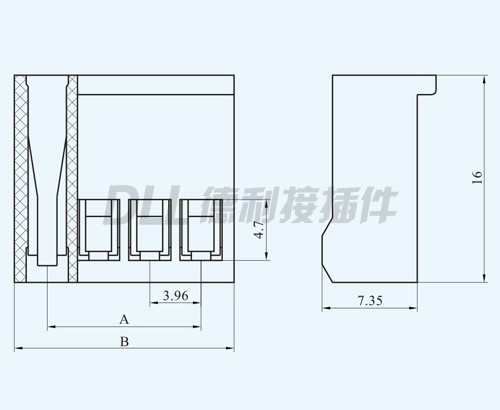

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | 3.96-2A/3.96-2AW/3.96-2AWT | 3.96 | 7.92 |
| 3 | 3.96-3A/3.96-3AW/3.96-3AWT | 7.92 | 11.88 |
| 4 | 3.96-4A/3.96-4AW/3.96-4AWT | 11.88 | 15.84 |
| 5 | 3.96-5A/3.96-5AW/3.96-5AWT | 15.84 | 19.80 |
| 6 | 3.96-6A/3.96-6AW/3.96-6AWT | 19.80 | 23.76 |
| 7 | 3.96-7A/3.96-7AW/3.96-7AWT | 23.76 | 27.72 |
| 8 | 3.96-8A/3.96-8AW/3.96-8AWT | 27.72 | 31.68 |
| 9 | 3.96-9A/3.96-9AW/3.96-9AWT | 31.68 | 35.64 |
| 10 | 3.96-10A/3.96-10AW/3.96-10AWT | 35.64 | 39.60 |
| 11 | 3.96-11A/3.96-11AW/3.96-11AWT | 39.60 | 43.56 |
| 12 | 3.96-12A/3.96-12AW/3.96-12AWT | 43.56 | 47.52 |
| 13 | 3.96-13A/3.96-13AW/3.96-13AWT | 47.52 | 51.48 |
| 14 | 3.96-14A/3.96-14AW/3.96-14AWT | 51.48 | 55.44 |
| 15 | 3.96-15A/3.96-15AW/3.96-15AWT | 55.44 | 59.40 |
| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | 5195-2Y | 3.96 | 9.06 |
| 3 | 5195-3Y | 7.92 | 13.02 |
| 4 | 5195-4Y | 11.88 | 16.98 |
| 5 | 5195-5Y | 15.84 | 20.94 |
| 6 | 5195-6Y | 19.80 | 24.90 |
| 7 | 5195-7Y | 23.76 | 28.86 |
| 8 | 5195-8Y | 27.72 | 32.82 |
| 9 | 5195-9Y | 31.68 | 36.78 |
| 10 | 5195-10Y | 35.64 | 40.74 |
| 11 | 5195-11Y | 39.60 | 44.70 |
| 12 | 5195-12Y | 43.56 | 48.66 |
| 13 | 5195-13Y | 47.52 | 52.62 |
| 14 | 5195-14Y | 51.48 | 56.58 |
| 15 | 5195-15Y | 55.44 | 60.54 |
