| 技術(shù)特性 | |
| 額定電壓 | 300V AC，DC |
| 額定電流 | 9A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 適用線規(guī) | AWG#28~#16 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍 UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

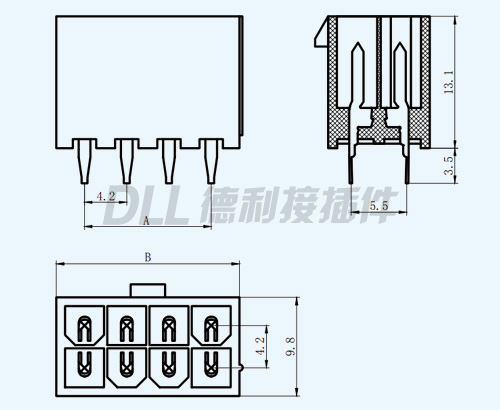

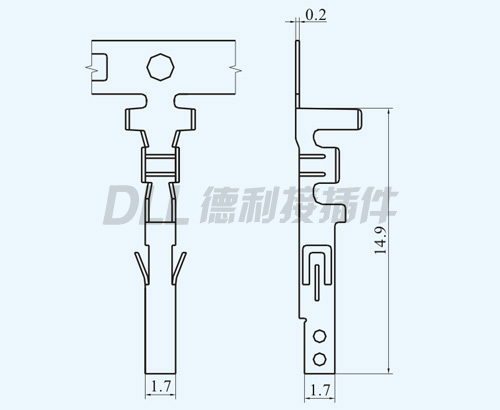

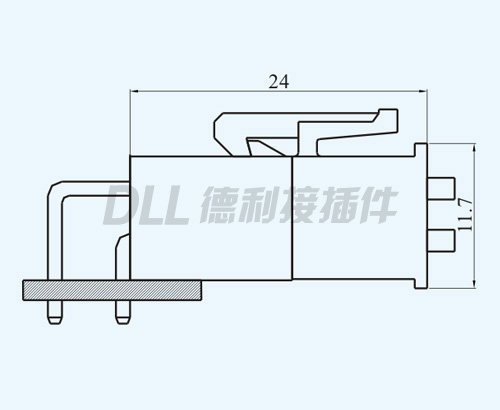

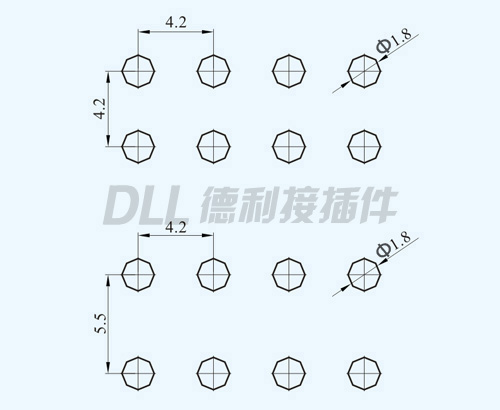

參考圖紙
Rosh
MSDS

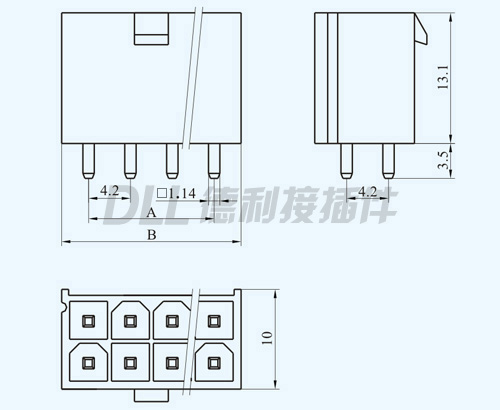

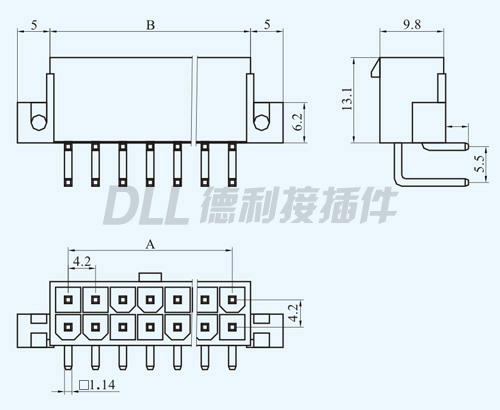

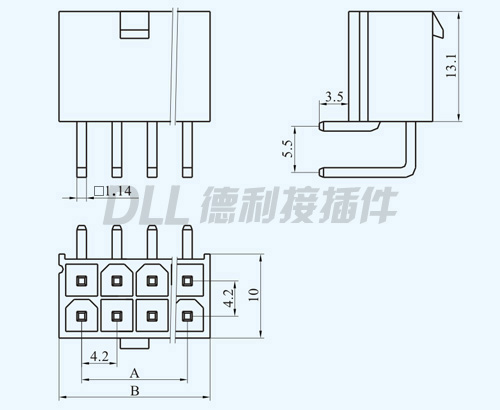

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2×1 | 5566-2A/5569-2A/5569-2AW/5569F-2AW | - | 5.4 |
| 2×2 | 5566-4A/5569-4A/5569-4AW/5569F-4AW | 4.2 | 9.6 |
| 2×3 | 5566-6A/5569-6A/5569-6AW/5569F-6AW | 8.4 | 13.8 |
| 2×4 | 5566-8A/5569-8A/5569-8AW/5569F-8AW | 12.6 | 18.0 |
| 2×5 | 5566-10A/5569-10A/5569-10AW/5569F-10AW | 16.8 | 22.2 |
| 2×6 | 5566-12A/5569-12A/5569-12AW/5569F-12AW | 21.0 | 26.4 |
| 2×7 | 5566-14A/5569-14A/5569-14AW/5569F-14AW | 25.2 | 30.6 |
| 2×8 | 5566-16A/5569-16A/5569-16AW/5569F-16AW | 29.4 | 34.8 |
| 2×9 | 5566-18A/5569-18A/5569-18AW/5569F-18AW | 33.6 | 39.0 |
| 2×10 | 5566-20A/5569-20A/5569-20AW/5569F-20AW | 37.8 | 43.2 |
| 2×11 | 5566-22A/5569-22A/5569-22AW/5569F-22AW | 42.0 | 47.4 |
| 2×12 | 5566-24A/5569-24A/5569-24AW/5569F-24AW | 46.2 | 51.6 |

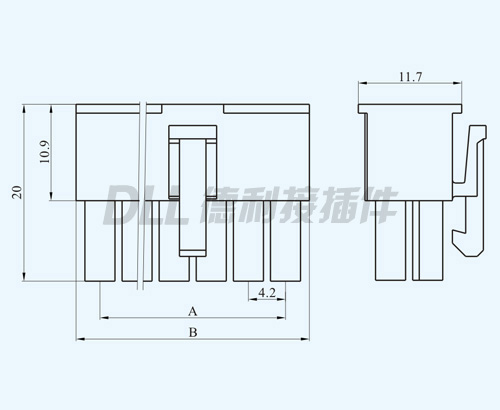

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2×1 | 5557-2Y | - | 5.4 |
| 2×2 | 5557-4Y | 4.2 | 9.6 |
| 2×3 | 5557-6Y | 8.4 | 13.8 |
| 2×4 | 5557-8Y | 12.6 | 18.0 |
| 2×5 | 5557-10Y | 16.8 | 22.2 |
| 2×6 | 5557-12Y | 21.0 | 26.4 |
| 2×7 | 5557-14Y | 25.2 | 30.6 |
| 2×8 | 5557-16Y | 29.4 | 34.8 |
| 2×9 | 5557-18Y | 33.6 | 39.0 |
| 2×10 | 5557-20Y | 37.8 | 43.2 |
| 2×11 | 5557-22Y | 42.0 | 47.4 |
| 2×12 | 5557-24Y | 46.2 | 51.6 |
