| 技術特性 | |
| 額定電壓 | 300V AC，DC |
| 額定電流 | 9A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#28?#16 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

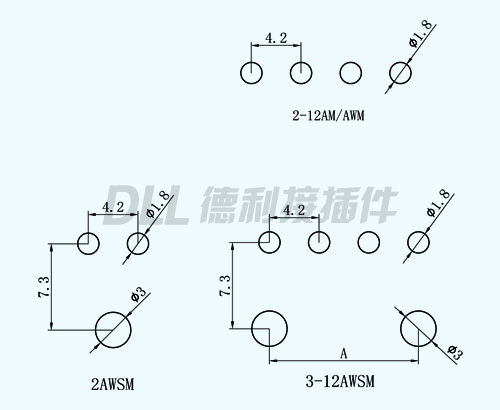

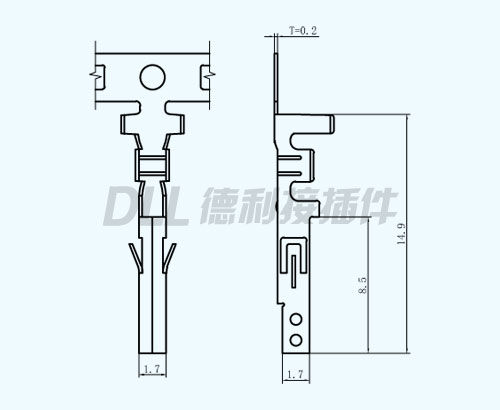

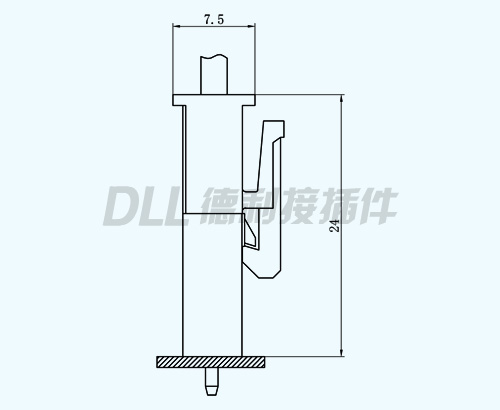

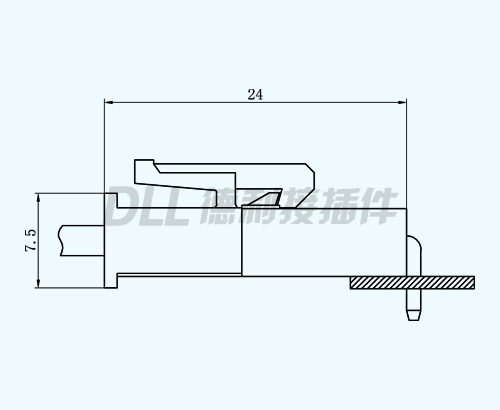

參考圖紙
Rosh
MSDS

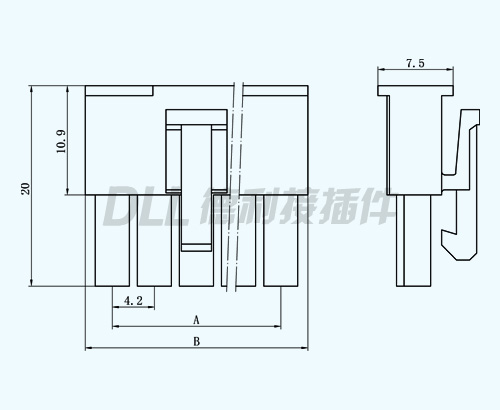

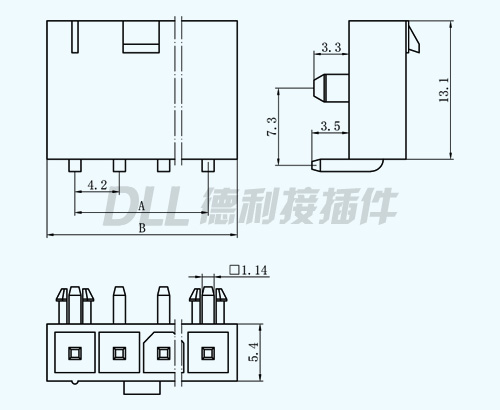

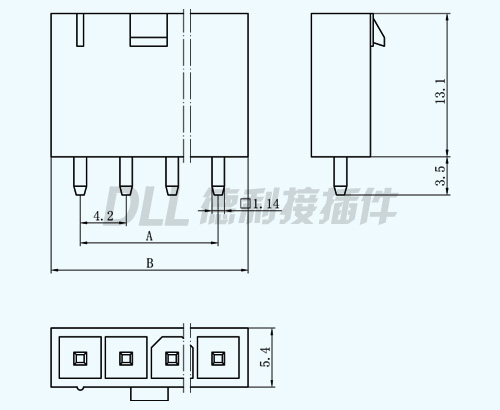

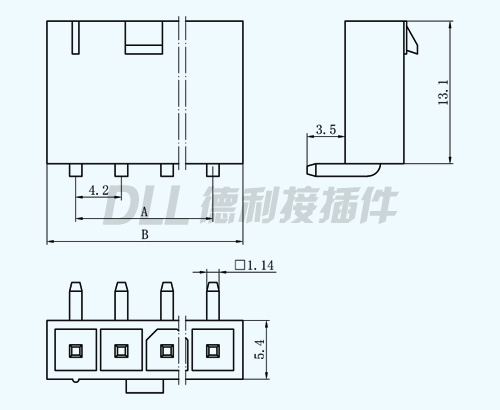

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2 | 5569-2AM/5569-2AWM | 5557-2Y | 4.2 | 9.6 |
| 3 | 5569-3AM/5569-3AWM | 5557-3Y | 8.4 | 13.8 |
| 4 | 5569-4AM/5569-4AWM | 5557-4Y | 12.6 | 18.0 |
| 5 | 5569-5AM/5569-5AWM | 5557-5Y | 16.8 | 22.2 |
| 6 | 5569-6AM/5569-6AWM | 5557-6Y | 21.0 | 26.4 |
| 7 | 5569-7AM/5569-7AWM | 5557-7Y | 25.2 | 30.6 |
| 8 | 5569-8AM/5569-8AWM | 5557-8Y | 29.4 | 34.8 |
| 9 | 5569-9AM/5569-9AWM | 5557-9Y | 33.6 | 39.0 |
| 10 | 5569-10AM/5569-10AWM | 5557-10Y | 37.8 | 43.2 |
| 11 | 5569-11AM/5569-11AWM | 5557-11Y | 42.0 | 47.4 |
| 12 | 5569-12AM/5569-12AWM | 5557-12Y | 46.2 | 51.6 |
