| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#28?#22 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

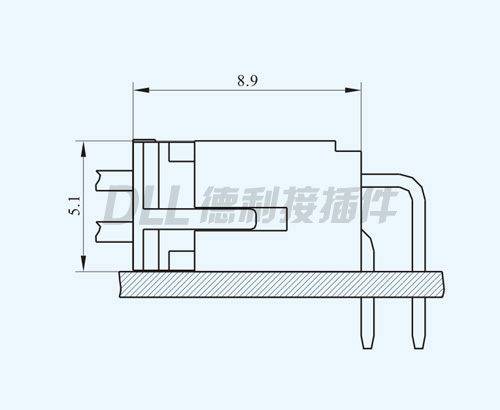

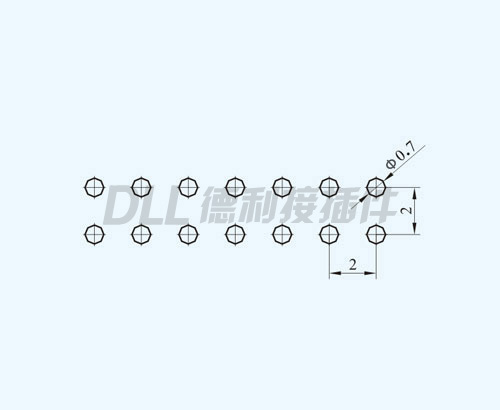

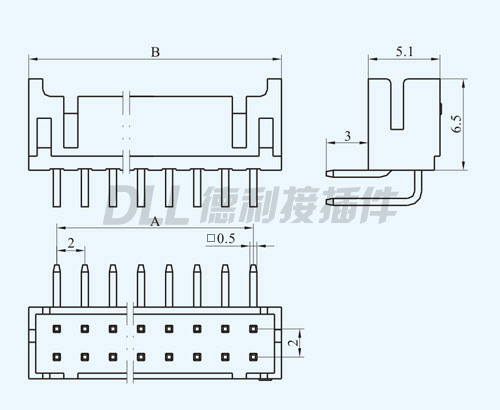

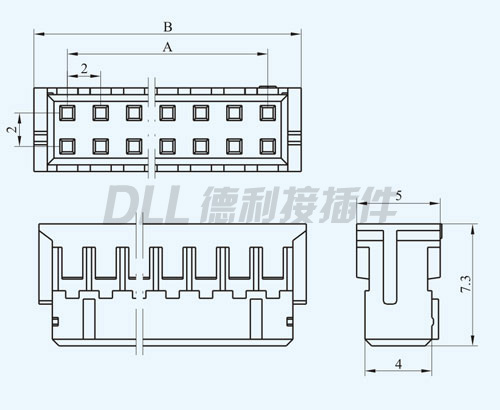

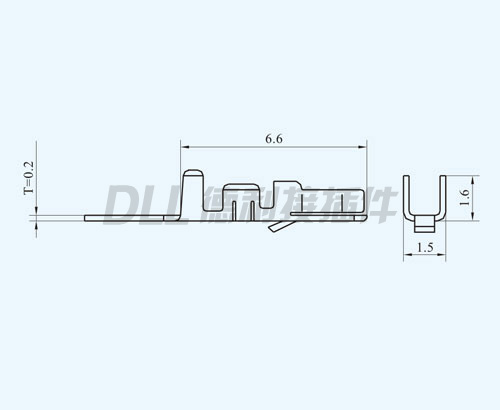

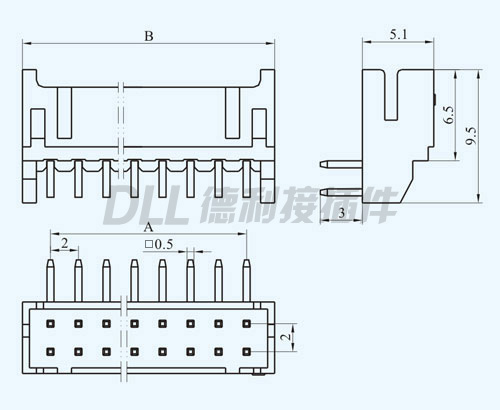

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2×2 | PHD-4Y | PHD-4A/PHD-4AW/PHD-4AWD | 2.00 | 6.00 |
| 2×3 | PHD-6Y | PHD-6A/PHD-6AW/PHD-6AWD | 4.00 | 8.00 |
| 2×4 | PHD-8Y | PHD-8A/PHD-8AW/PHD-8AWD | 6.00 | 10.00 |
| 2×5 | PHD-10Y | PHD-10A/PHD-10AW/PHD-10AWD | 8.00 | 12.00 |
| 2×6 | PHD-12Y | PHD-12A/PHD-12AW/PHD-12AWD | 10.00 | 14.00 |
| 2×7 | PHD-14Y | PHD-14A/PHD-14AW/PHD-14AWD | 12.00 | 16.00 |
| 2×8 | PHD-16Y | PHD-16A/PHD-16AW/PHD-16AWD | 14.00 | 18.00 |
| 2×9 | PHD-18Y | PHD-18A/PHD-18AW/PHD-18AWD | 16.00 | 20.00 |
| 2×10 | PHD-20Y | PHD-20A/PHD-20AW/PHD-20AWD | 18.00 | 22.00 |
| 2×11 | PHD-22Y | PHD-22A/PHD-22AW/PHD-22AWD | 20.00 | 24.00 |
| 2×12 | PHD-24Y | PHD-24A/PHD-24AW/PHD-24AWD | 22.00 | 26.00 |
| 2×13 | PHD-26Y | PHD-26A/PHD-26AW/PHD-26AWD | 24.00 | 28.00 |
| 2×14 | PHD-28Y | PHD-28A/PHD-28AW/PHD-28AWD | 26.00 | 30.00 |
| 2×15 | PHD-30Y | PHD-30A/PHD-30AW/PHD-30AWD | 28.00 | 32.00 |
| 2×16 | PHD-32Y | PHD-32A/PHD-32AW/PHD-32AWD | 30.00 | 34.00 |
| 2×17 | PHD-34Y | PHD-34A/PHD-34AW/PHD-34AWD | 32.00 | 36.00 |
| 2×18 | PHD-36Y | PHD-36A/PHD-36AW/PHD-36AWD | 34.00 | 38.00 |
| 2×19 | PHD-38Y | PHD-38A/PHD-38AW/PHD-38AWD | 36.00 | 40.00 |
| 2×20 | PHD-40Y | PHD-40A/PHD-40AW/PHD-40AWD | 38.00 | 42.00 |
| 2×21 | PHD-42Y | PHD-42A/PHD-42AW/PHD-42AWD | 40.00 | 44.00 |
| - | - | - | - | - |
| 2×23 | PHD-46Y | PHD-46A/PHD-46AW/PHD-46AWD | 44.00 | 48.00 |
