| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

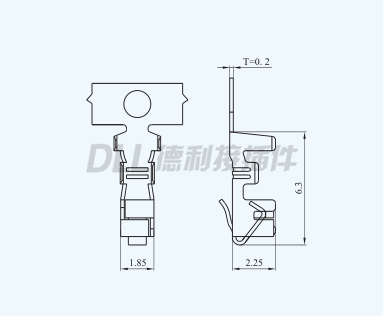

| 端子 | 磷青銅,鍍錫 |

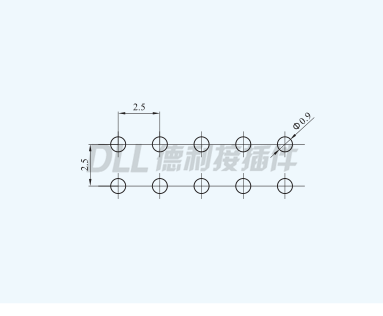

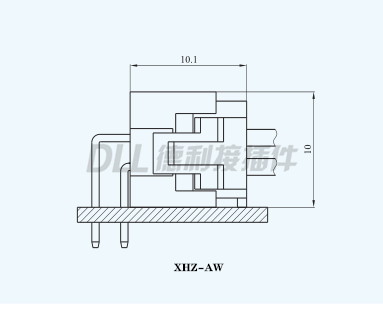

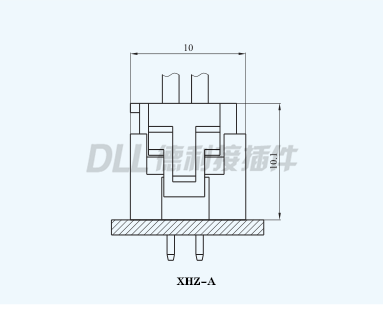

參考圖紙
Rosh
MSDS

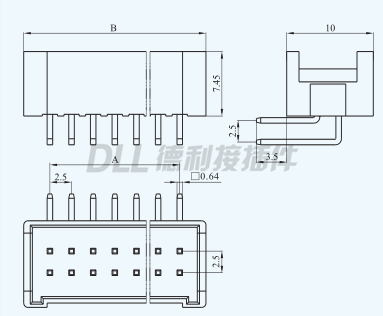

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2x2 | XHZ-4A/XHZY-4AWD | 2.50 | 8.50 | |
| 2x3 | XHZ-6A/XHZ-6AWD | 5.00 | 11.00 | |
| 2x4 | XHZ-8A/XHZ-8AWD | 7.50 | 13.50 | |
| 2x5 | XHZ-10A/XHZ-10AWD | 10.00 | 16.00 | |
| 2x6 | XHZ-12A/XHZ-12AWD | 12.50 | 18.50 | |
| 2x7 | XHZ-14A/XHZ-14AWD | 15.00 | 21.00 | |
| 2x8 | XHZ-16A/XHZ-16AWD | 17.50 | 23.50 | |
| 2x9 | XHZ-18A/XHZ-18AWD | 20.00 | 26.00 | |
| 2x10 | XHZ-20A/XHZ-20AWD | 22.50 | 28.50 | |
| 2x11 | XHZ-22A/XHZ-22AWD | 25.00 | 31.00 | |
| 2x12 | XHZ-24A/XHZ-24AWD | 27.50 | 33.50 | |
| 2x13 | XHZ-26A/XHZ-26AWD | 30.00 | 36.00 | |
| 2x14 | XHZ-28A/XHZ-28AWD | 32.50 | 38.50 | |
| 2x15 | XHZ-30A/XHZ-30AWD | 35.00 | 41.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XHZ-40A/XHZ-40AWD | 47.50 | 53.50 | |

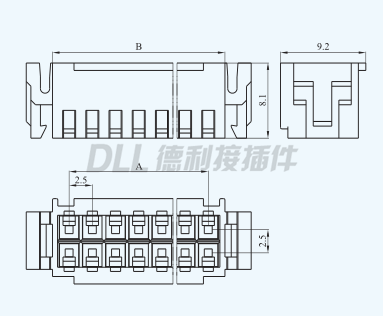

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2x2 | XHZ-4Y | 2.50 | 6.10 | |
| 2x3 | XHZ-6Y | 5.00 | 8.60 | |
| 2x4 | XHZ-8Y | 7.50 | 11.10 | |
| 2x5 | XHZ-10Y | 10.00 | 13.60 | |
| 2x6 | XHZ-12Y | 12.50 | 16.10 | |
| 2x7 | XHZ-14Y | 15.00 | 18.60 | |
| 2x8 | XHZ-16Y | 17.50 | 21.10 | |
| 2x9 | XHZ-18Y | 20.00 | 23.60 | |
| 2x10 | XHZ-20Y | 22.50 | 26.10 | |
|
2x11 |
XHZ-22Y | 25.00 | 28.60 | |
| 2x12 | XHZ-24Y | 27.50 | 31.10 | |
|
2x13 |
XHZ-26Y | 30.00 | 33.60 | |
| 2x14 | XHZ-28Y | 32.50 | 36.10 | |
| 2x15 | XHZ-30Y | 35.00 | 38.60 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XHZ-40Y | 47.50 | 51.10 | |
