| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 30m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 650V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

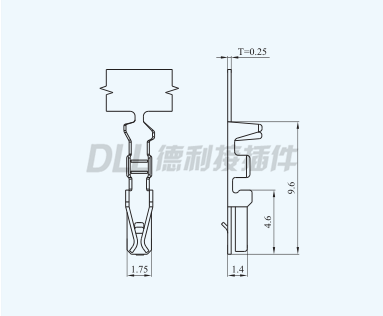

| 端子 | 磷青銅,鍍錫 |

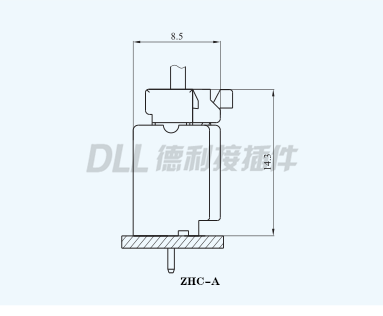

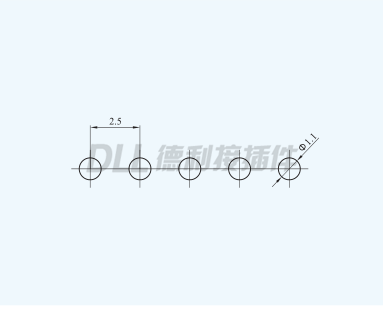

參考圖紙
Rosh
MSDS

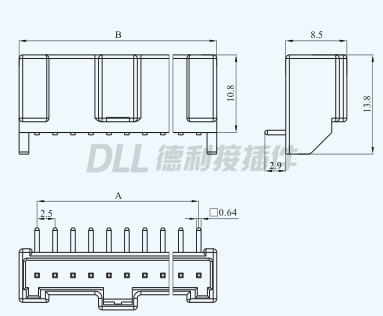

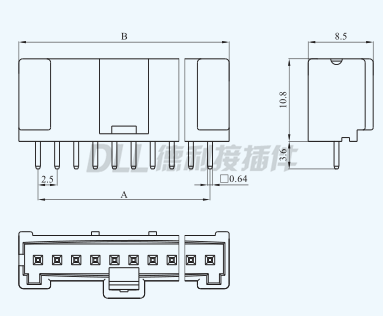

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||
| 2 | ZHC-2A/ZHC-2AWD | 2.50 | 7.50 | |
| 3 | ZHC-3A/ZHC-3AWD | 5.00 | 10.00 | |
| 4 | ZHC-4A/ZHC-4AWD | 7.50 | 12.50 | |
| 5 | ZHC-5A/ZHC-5AWD | 10.00 | 15.00 | |
| 6 | ZHC-6A/ZHC-6AWD | 12.50 | 17.50 | |
| 7 | ZHC-7A/ZHC-7AWD | 15.00 | 20.00 | |
| 8 | ZHC-8A/ZHC-8AWD | 17.50 | 22.50 | |
| 9 | ZHC-9A/ZHC-9AWD | 20.00 | 25.00 | |
| 10 | ZHC-10A/ZHC-10AWD | 22.50 | 27.50 | |
| 11 | ZHC-11A/ZHC-11AWD | 25.00 | 30.00 | |
| 12 | ZHC-12A/ZHC-12AWD | 27.50 | 32.50 | |
| 13 | ZHC-13A/ZHC-13AWD | 30.00 | 35.00 | |
| 14 | ZHC-14A/ZHC-14AWD | 32.50 | 37.50 | |
| 15 | ZHC-15A/ZHC-15AWD | 35.00 | 40.00 | |
| ~ | ~ | ~ | ~ | |
| 20 | ZHC-20A/ZHC-20AWD | 47.50 | 52.50 | |
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | ZHC-2Y | 2.50 | 8.00 | 5.40 |
| 3 | ZHC-3Y | 5.00 | 10.50 | 7.90 |
| 4 | ZHC-4Y | 7.50 | 13.00 | 10.40 |
| 5 | ZHC-5Y | 10.00 | 15.50 | 12.90 |
| 6 | ZHC-6Y | 12.50 | 18.00 | 15.40 |
| 7 | ZHC-7Y | 15.00 | 20.50 | 17.90 |
| 8 | ZHC-8Y | 17.50 | 23.00 | 20.40 |
| 9 | ZHC-9Y | 20.00 | 25.50 | 22.90 |
| 10 | ZHC-10Y | 22.50 | 28.00 | 25.40 |
| 11 | ZHC-11Y | 25.00 | 30.50 | 27.90 |
| 12 | ZHC-12Y | 27.50 | 33.00 | 30.40 |
| 13 | ZHC-13Y | 30.00 | 35.50 | 32.90 |
| 14 | ZHC-14Y | 32.50 | 35.00 | 35.40 |
| 15 | ZHC-15Y | 35.00 | 40.50 | 37.90 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | ZHC-20Y | 47.50 | 53.00 | 50.40 |
