| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

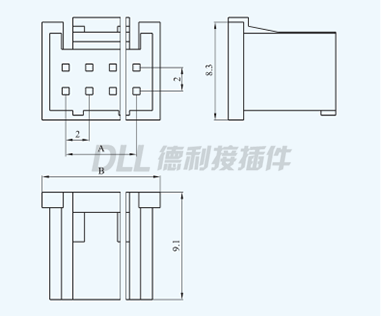

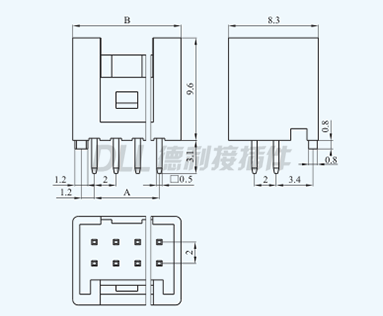

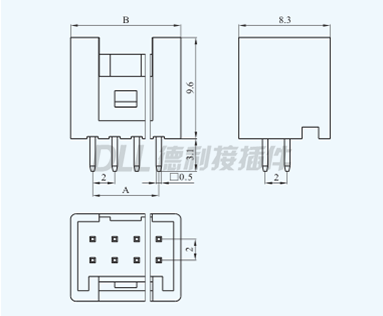

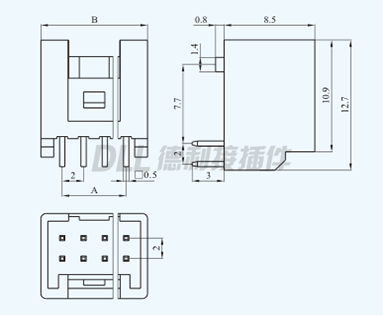

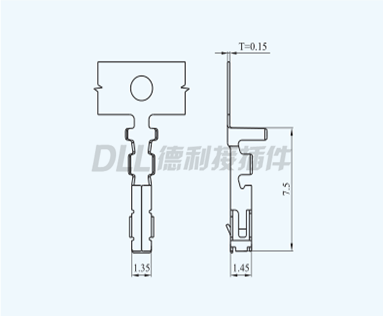

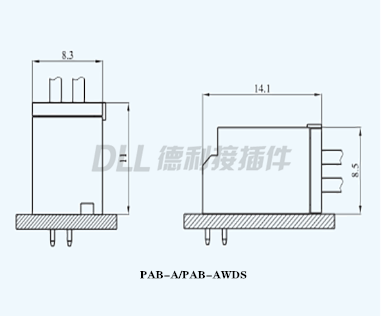

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||
| 2x2 | PAB-4A/PAB-4AS/PAB-4AWDS | 2.00 | 6.00 | |
| 2x3 | PAB-6A/PAB-6AS/PAB-6AWDS | 4.00 | 8.00 | |
| 2x4 | PAB-8A/PAB-8AS/PAB-8AWDS | 6.00 | 10.00 | |
| 2x5 | PAB-10A/PAB-10AS/PAB-10AWDS | 8.00 | 12.00 | |
| 2x6 | PAB-12A/PAB-12AS/PAB-12AWDS | 10.00 | 14.00 | |
| 2x7 | PAB-14A/PAB-14AS/PAB-14AWDS | 12.00 | 16.00 | |
| 2x8 | PAB-16A/PAB-16AS/PAB-16AWDS | 14.00 | 18.00 | |
| 2x9 | PAB-18A/PAB-18AS/PAB-18AWDS | 16.00 | 20.00 | |
| 2x10 | PAB-20A/PAB-20AS/PAB-20AWDS | 18.00 | 22.00 | |
| 2x11 | PAB-22A/PAB-22AS/PAB-22AWDS | 20.00 | 24.00 | |
| 2x12 | PAB-24A/PAB-24AS/PAB-24AWDS | 22.00 | 26.00 | |
| 2x13 | PAB-26A/PAB-26AS/PAB-26AWDS | 24.00 | 28.00 | |
| 2x14 | PAB-28A/PAB-28AS/PAB-28AWDS | 26.00 | 30.00 | |
| 2x15 | PAB-30A/PAB-30AS/PAB-30AWDS | 28.00 | 32.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | PAB-40A/PAB-40AS/PAB-40AWDS | 38.00 | 42.00 | |
| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2x2 | PAB-4Y | 2.00 | 6.00 |
| 2x3 | PAB-6Y | 4.00 | 8.00 |
| 2x4 | PAB-8Y | 6.00 | 10.00 |
| 2x5 | PAB-10Y | 8.00 | 12.00 |
| 2x6 | PAB-12Y | 10.00 | 14.00 |
| 2x7 | PAB-14Y | 12.00 | 16.00 |
| 2x8 | PAB-16Y | 14.00 | 18.00 |
| 2x9 | PAB-18Y | 16.00 | 20.00 |
| 2x10 | PAB-20Y | 18.00 | 22.00 |
| 2x11 | PAB-22Y | 20.00 | 24.00 |
| 2x12 | PAB-24Y | 22.00 | 26.00 |
|
2x13 |
PAB-26Y | 24.00 | 28.00 |
| 2x14 | PAB-28Y | 26.00 | 30.00 |
| 2x15 | PAB-30Y | 28.00 | 32.00 |
| ~ | ~ | ~ | ~ |
| 2x20 | PAB-40Y | 38.00 | 42.00 |
