| 技術特性 | |
| 額定電壓 | 100V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

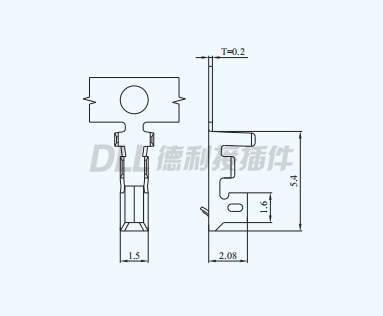

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS
注：以上圖紙僅供參考,詳情請咨詢我司銷售人員

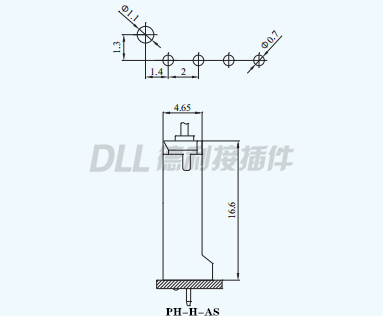

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2 | PH-H-2AS | 2.00 | 6.00 | |
| 3 | PH-H-3AS | 4.00 | 8.00 | |
| 4 | PH-H-4AS | 6.00 | 10.00 | |
| 5 | PH-H-5AS | 8.00 | 12.00 | |
| 6 | PH-H-6AS | 10.00 | 14.00 | |
| 7 | PH-H-7AS | 12.00 | 16.00 | |
| 8 | PH-H-8AS | 14.00 | 18.00 | |
| 9 | PH-H-9AS | 16.00 | 20.00 | |
| 10 | PH-H-10AS | 18.00 | 22.00 | |
| 11 | PH-H-11AS | 20.00 | 24.00 | |
| 12 | PH-H-12AS | 22.00 | 26.00 | |
| 13 | PH-H-13AS | 24.00 | 28.00 | |
| ~ | ~ | ~ | ~ | |
| 18 | PH-H-18AS | 34.00 | 38.00 | |

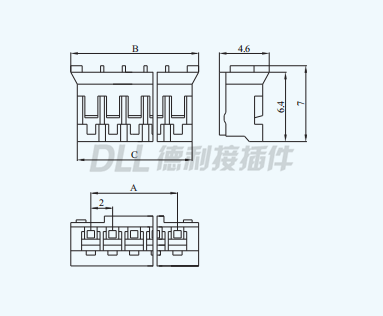

| 電路 | 類型 | 尺寸 | |||
| A | B | C | |||
| 2 |
PH-H-2Y |
2.00 | 5.80 | 4.55 | |
| 3 |
PH-H-3Y |
4.00 | 7.80 | 6.55 | |
| 4 |
PH-H-4Y |
6.00 | 9.80 | 8.55 | |
| 5 |
PH-H-5Y |
8.00 | 11.80 | 10.55 | |
| 6 |
PH-H-6Y |
10.00 | 13.80 | 12.55 | |
| 7 |
PH-H-7Y |
12.00 | 15.80 | 14.55 | |
| 8 |
PH-H-8Y |
14.00 | 17.80 | 16.55 | |
| 9 |
PH-H-9Y |
16.00 | 19.80 | 18.55 | |
| 10 |
PH-H-10Y |
18.00 | 21.80 | 20.55 | |
| 11 |
PH-H-11Y |
20.00 | 23.80 | 22.55 | |
| 12 |
PH-H-12Y |
22.0 | 25.80 | 24.55 | |
| 13 |
PH-H-13Y |
24.00 | 27.80 | 26.55 | |
| ~ |
~ |
~ | ~ | ~ | |
| 18 |
PH-H-18Y |
34.00 | 37.80 | 36.55 | |
