| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

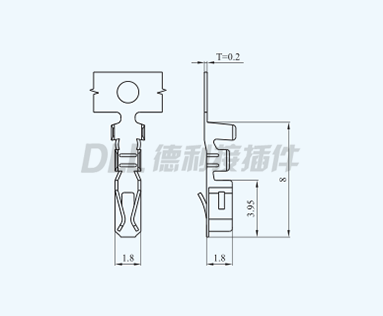

| 銅針 | 黃銅,鍍錫 |
參考圖紙
Rosh
MSDS

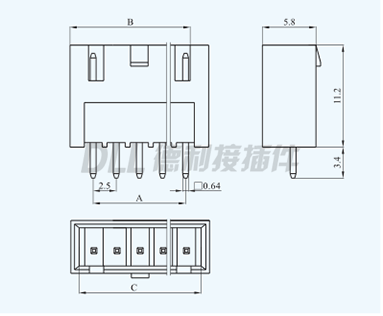

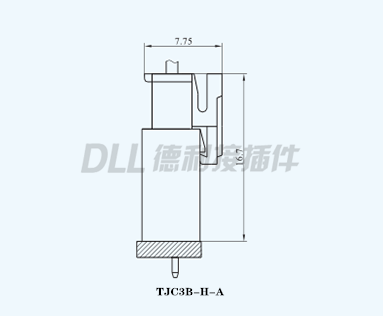

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-H-2A | 2.50 | 7.50 | 5.70 |
| 3 | TJC3B-H-3A | 5.00 | 10.00 | 8.20 |
| 4 | TJC3B-H-4A | 7.50 | 12.50 | 10.70 |
| 5 | TJC3B-H-5A | 10.00 | 15.00 | 13.20 |
| 6 | TJC3B-H-6A | 12.50 | 17.50 | 15.70 |
| 7 | TJC3B-H-7A | 15.00 | 20.00 | 18.20 |
| 8 | TJC3B-H-8A | 17.50 | 22.50 | 20.70 |
| 9 | TJC3B-H-9A | 20.00 | 25.00 | 23.20 |
| 10 | TJC3B-H-10A | 22.50 | 27.50 | 25.70 |
| 11 | TJC3B-H-11A | 25.00 | 30.00 | 28.20 |
| 12 | TJC3B-H-12A | 27.50 | 32.50 | 30.70 |
| 13 | TJC3B-H-13A | 30.00 | 35.00 | 33.20 |
| 14 | TJC3B-H-14A | 32.50 | 37.50 | 35.70 |
| 15 | TJC3B-H-15A | 35.00 | 40.00 | 38.20 |

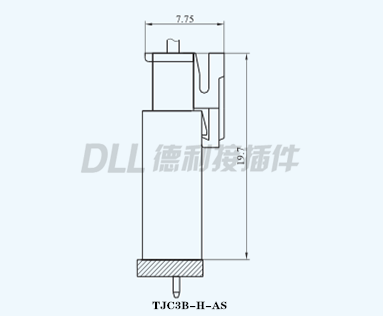

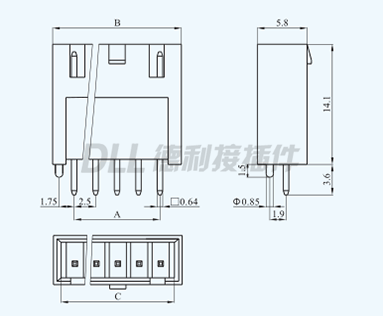

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-H-2AS | 2.50 | 7.50 | 5.90 |
| 3 | TJC3B-H-3AS | 5.00 | 10.00 | 8.40 |
| 4 | TJC3B-H-4AS | 7.50 | 12.50 | 10.90 |
| 5 | TJC3B-H-5AS | 10.00 | 15.00 | 13.40 |
| 6 | TJC3B-H-6AS | 12.50 | 17.50 | 15.90 |
| 7 | TJC3B-H-7AS | 15.00 | 20.00 | 18.40 |
| 8 | TJC3B-H-8AS | 17.50 | 22.50 | 20.90 |
| 9 | TJC3B-H-9AS | 20.00 | 25.00 | 23.40 |
| 10 | TJC3B-H-10AS | 22.50 | 27.50 | 25.90 |
| 11 | TJC3B-H-11AS | 25.00 | 30.00 | 28.40 |
| 12 | TJC3B-H-12AS | 27.50 | 32.50 | 30.90 |
| 13 | TJC3B-H-13AS | 30.00 | 35.00 | 33.40 |
| 14 | TJC3B-H-14AS | 32.50 | 37.50 | 35.90 |
| 15 | TJC3B-H-15AS | 35.00 | 40.00 | 38.40 |

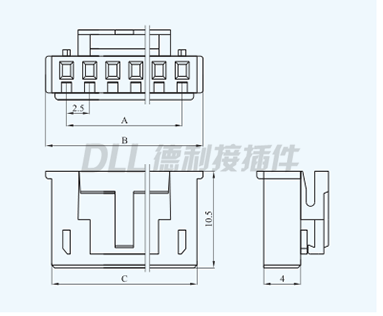

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-H-2Y | 2.50 | 7.00 | 5.60 |
| 3 | TJC3B-H-3Y | 5.00 | 9.50 | 8.10 |
| 4 | TJC3B-H-4Y | 7.50 | 12.00 | 10.60 |
| 5 | TJC3B-H-5Y | 10.00 | 14.50 | 13.10 |
| 6 | TJC3B-H-6Y | 12.50 | 17.00 | 15.60 |
| 7 | TJC3B-H-7Y | 15.00 | 19.50 | 18.10 |
| 8 | TJC3B-H-8Y | 17.50 | 22.00 | 20.60 |
| 9 | TJC3B-H-9Y | 20.00 | 24.50 | 23.10 |
| 10 | TJC3B-H-10Y | 22.50 | 27.00 | 25.60 |
| 11 | TJC3B-H-11Y | 25.00 | 29.50 | 28.10 |
| 12 | TJC3B-H-12Y | 27.50 | 32.00 | 30.60 |
| 13 | TJC3B-H-13Y | 30.00 | 34.50 | 33.10 |
| 14 | TJC3B-H-14Y | 32.50 | 37.00 | 35.60 |
| 15 | TJC3B-H-15Y | 35.00 | 39.50 | 38.10 |
