| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 鎖扣 | 尼龍UL94-V0(2) |

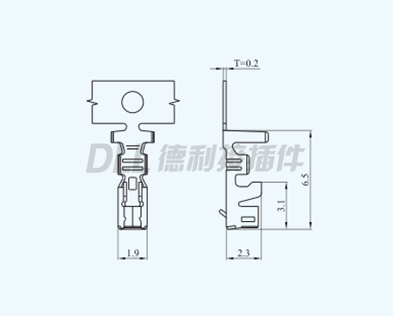

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

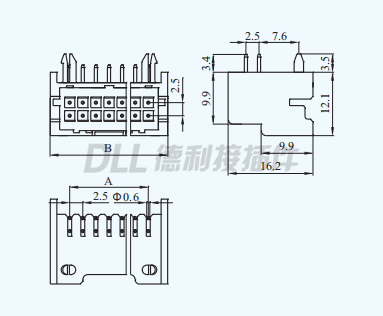

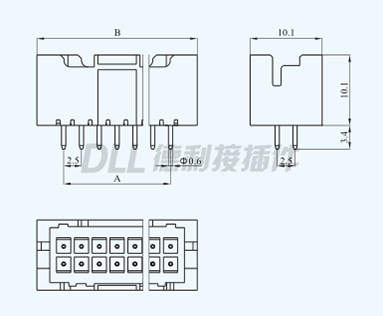

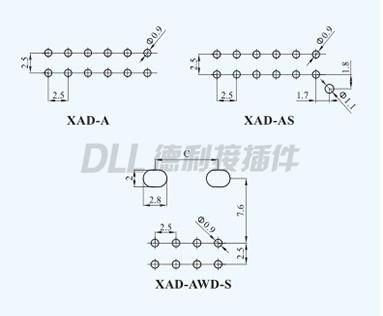

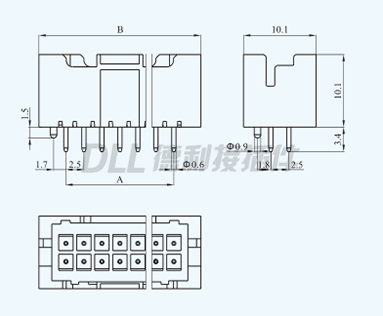

| 電路 | 類型 | 尺寸(mm) | |||
| A | B | C | |||

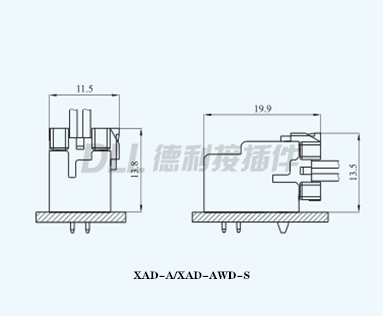

| 2x2 | XAD-4AS/XAD-4AWD/XAD-4A-S | 2.50 | 10.00 | / | |
| 2x3 |
XAD-6AS/XAD-6AWD/XAD-6A-S |
5.00 | 12.50 | / | |
| 2x4 |
XAD-8AS/XAD-8AWD/XAD-8A-S |
7.50 | 15.00 | 7.50 | |
| 2x5 |
XAD-10AS/XAD-10AWD/XAD-10A-S |
10.00 | 17.50 | 10.00 | |
| 2x6 |
XAD-12AS/XAD-12AWD/XAD-12A-S |
12.50 | 20.00 | 12.50 | |
| 2x7 |
XAD-14AS/XAD-14AWD/XAD-14A-S |
15.00 | 22.50 | 15.00 | |
| 2x8 |
XAD-16AS/XAD-16AWD/XAD-16A-S |
17.50 | 25.00 | 17.50 | |
| 2x9 |
XAD-18AS/XAD-18AWD/XAD-18A-S |
20.00 | 27.50 | 20.00 | |
| 2x10 |
XAD-20AS/XAD-20AWD/XAD-20A-S |
22.50 | 30.00 | 22.50 | |
| 2x11 |
XAD-22AS/XAD-22AWD/XAD-22A-S |
25.00 | 32.50 | 25.00 | |
| 2x12 |
XAD-24AS/XAD-24AWD/XAD-24A-S |
27.50 | 35.00 | 27.50 | |
| 2x13 |
XAD-26AS/XAD-26AWD/XAD-26A-S |
30.00 | 37.50 | 30.00 | |
| ~ | ~ | ~ | ~ | ~ | |
| 2x20 |
XAD-40AS/XAD-40AWD/XAD-40A-S |
47.50 | 55.00 | 47.50 | |
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||

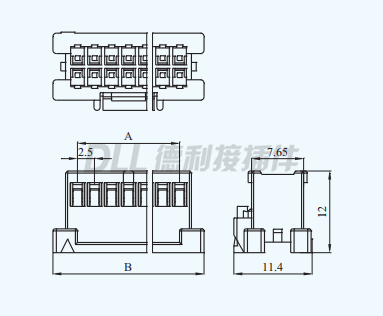

| 2x2 | XAD-4Y | 2.50 | 9.70 | |
| 2x3 | XAD-6Y | 5.00 | 12.20 | |
| 2x4 | XAD-8Y | 7.50 | 14.70 | |
| 2x5 | XAD-10Y | 10.00 | 17.20 | |
| 2x6 | XAD-12Y | 12.50 | 19.70 | |
| 2x7 | XAD-14Y | 15.00 | 22.20 | |
| 2x8 | XAD-16Y | 17.50 | 24.70 | |
| 2x9 | XAD-18Y | 20.00 | 27.20 | |
|
2x10 |
XAD-20Y | 22.50 | 29.70 | |
| 2x11 | XAD-22Y | 25.00 | 32.20 | |
| 2x12 | XAD-24Y | 27.50 | 34.70 | |
| 2x13 | XAD-26Y | 30.00 | 37.20 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XAD-40Y | 47.50 | 54.70 | |
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||
| 2x2 | XAD-4S | 2.50 | 8.10 | |
| 2x3 | XAD-6S | 5.00 | 10.60 | |
| 2x4 | XAD-8S | 7.50 | 13.10 | |
| 2x5 | XAD-10S | 10.00 | 15.60 | |
| 2x6 | XAD-12S | 12.50 | 18.10 | |
| 2x7 | XAD-14S | 15.00 | 20.60 | |
| 2x8 | XAD-16S | 17.50 | 23.10 | |
| 2x9 | XAD-18S | 20.00 | 25.60 | |
| 2x10 | XAD-20S | 22.50 | 28.10 | |
| 2x11 | XAD-22S | 25.00 | 30.60 | |
| 2x12 | XAD-24S | 27.50 | 33.10 | |
| 2x13 | XAD-26S | 30.00 | 35.60 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XAD-40S | 47.50 | 53.10 | |
