| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#30?#26 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | PBT UL94-V0(2) |
| 端子 | 磷青銅,鍍錫/金 |

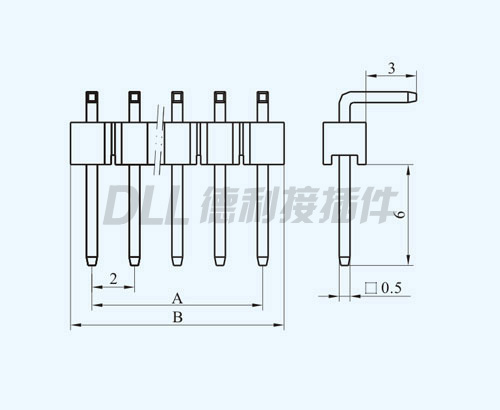

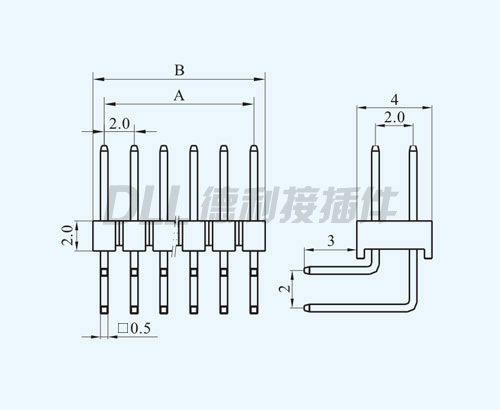

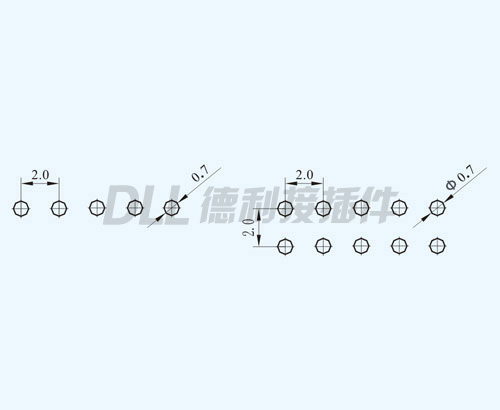

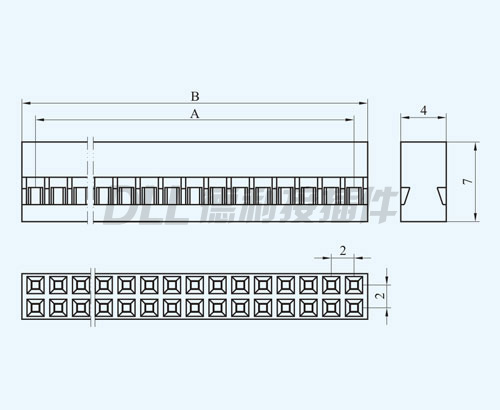

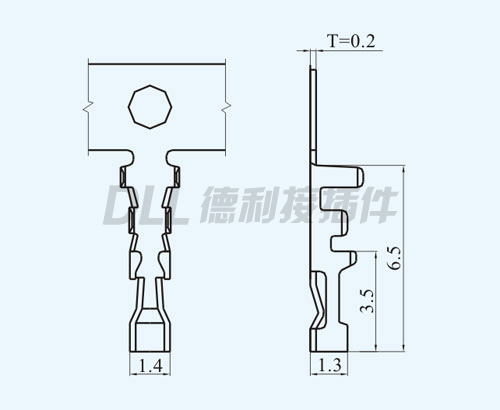

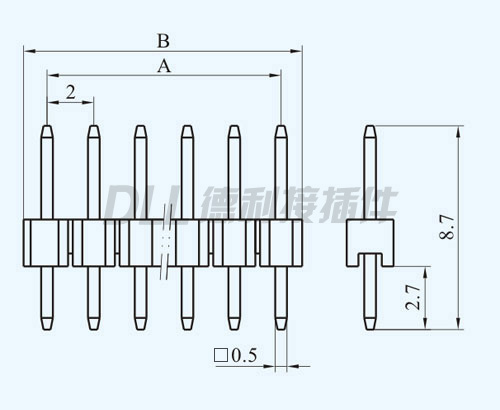

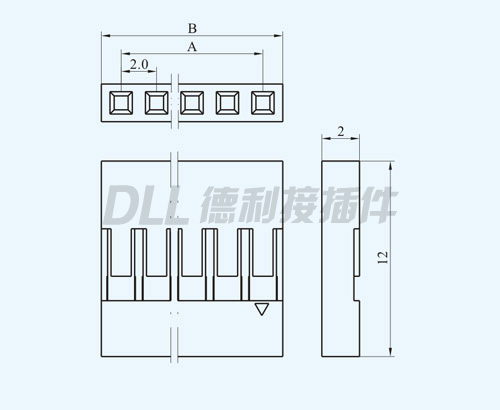

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | TJC8-2.0-2A/TJC8-2.0-2AW/TJC8-2.0-2AWT | 2.00 | 4.00 |
| 3 | TJC8-2.0-3A/TJC8-2.0-3AW/TJC8-2.0-3AWT | 4.00 | 6.00 |
| 4 | TJC8-2.0-4A/TJC8-2.0-4AW/TJC8-2.0-4AWT | 6.00 | 8.00 |
| 5 | TJC8-2.0-5A/TJC8-2.0-5AW/TJC8-2.0-5AWT | 8.00 | 10.00 |
| 6 | TJC8-2.0-6A/TJC8-2.0-6AW/TJC8-2.0-6AWT | 10.00 | 12.00 |
| 7 | TJC8-2.0-7A/TJC8-2.0-7AW/TJC8-2.0-7AWT | 12.00 | 14.00 |
| 8 | TJC8-2.0-8A/TJC8-2.0-8AW/TJC8-2.0-8AWT | 14.00 | 16.00 |
| 9 | TJC8-2.0-9A/TJC8-2.0-9AW/TJC8-2.0-9AWT | 16.00 | 18.00 |
| 10 | TJC8-2.0-10A/TJC8-2.0-10AW/TJC8-2.0-10AWT | 18.00 | 20.00 |
| 11 | TJC8-2.0-11A/TJC8-2.0-11AW/TJC8-2.0-11AWT | 20.00 | 22.00 |
| 12 | TJC8-2.0-12A/TJC8-2.0-12AW/TJC8-2.0-12AWT | 22.00 | 24.00 |
| 13 | TJC8-2.0-13A/TJC8-2.0-13AW/TJC8-2.0-13AWT | 24.00 | 26.00 |
| ~ | ~ | ~ | ~ |
| 20 | TJC8-2.0-20A/TJC8-2.0-20AW/TJC8-2.0-20AWT | 38.00 | 40.00 |
| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | TJC8-2.0-2Y | 2.00 | 4.25 |
| 3 | TJC8-2.0-3Y | 4.00 | 6.25 |
| 4 | TJC8-2.0-4Y | 6.00 | 8.25 |
| 5 | TJC8-2.0-5Y | 8.00 | 10.25 |
| 6 | TJC8-2.0-6Y | 10.00 | 12.25 |
| 7 | TJC8-2.0-7Y | 12.00 | 14.25 |
| 8 | TJC8-2.0-8Y | 14.00 | 16.25 |
| 9 | TJC8-2.0-9Y | 16.00 | 18.25 |
| 10 | TJC8-2.0-10Y | 18.00 | 20.25 |
| 11 | TJC8-2.0-11Y | 20.00 | 22.25 |
| 12 | TJC8-2.0-12Y | 22.00 | 24.25 |
| 13 | TJC8-2.0-13Y | 24.00 | 26.25 |
| ~ | ~ | ~ | ~ |
| 20 | TJC8-2.0-20Y | 38.00 | 40.25 |
| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2×2 | TJC8-2.0-S-4A/TJC8-2.0-S-4AW/TJC8-2.0-S-4AWT | 2.00 | 4.00 |
| 2×3 | TJC8-2.0-S-6A/TJC8-2.0-S-6AW/TJC8-2.0-S-6AWT | 4.00 | 6.00 |
| 2×4 | TJC8-2.0-S-8A/TJC8-2.0-S-8AW/TJC8-2.0-S-8AWT | 6.00 | 8.00 |
| 2×5 | TJC8-2.0-S-10A/TJC8-2.0-S-10AW/TJC8-2.0-S-10AWT | 8.00 | 10.00 |
| 2×6 | TJC8-2.0-S-12A/TJC8-2.0-S-12AW/TJC8-2.0-S-12AWT | 10.00 | 12.00 |
| 2×7 | TJC8-2.0-S-14A/TJC8-2.0-S-14AW/TJC8-2.0-S-14AWT | 12.00 | 14.00 |
| 2×8 | TJC8-2.0-S-16A/TJC8-2.0-S-16AW/TJC8-2.0-S-16AWT | 14.00 | 16.00 |
| 2×9 | TJC8-2.0-S-18A/TJC8-2.0-S-18AW/TJC8-2.0-S-18AWT | 16.00 | 18.00 |
| 2×10 | TJC8-2.0-S-20A/TJC8-2.0-S-20AW/TJC8-2.0-S-20AWT | 18.00 | 20.00 |
| 2×11 | TJC8-2.0-S-22A/TJC8-2.0-S-22AW/TJC8-2.0-S-22AWT | 20.00 | 22.00 |
| 2×12 | TJC8-2.0-S-24A/TJC8-2.0-S-24AW/TJC8-2.0-S-24AWT | 22.00 | 24.00 |
| 2×13 | TJC8-2.0-S-26A/TJC8-2.0-S-26AW/TJC8-2.0-S-26AWT | 24.00 | 26.00 |
| ~ | ~ | ~ | ~ |
| 2×20 | TJC8-2.0-S-40A/TJC8-2.0-S-40AW/TJC8-2.0-S-40AWT | 38.00 | 40.00 |
| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2×2 | TJC8-2.0-S-4Y | 2.00 | 4.25 |
| 2×3 | TJC8-2.0-S-6Y | 4.00 | 6.25 |
| 2×4 | TJC8-2.0-S-8Y | 6.00 | 8.25 |
| 2×5 | TJC8-2.0-S-10Y | 8.00 | 10.25 |
| 2×6 | TJC8-2.0-S-12Y | 10.00 | 12.25 |
| 2×7 | TJC8-2.0-S-14Y | 12.00 | 14.25 |
| 2×8 | TJC8-2.0-S-16Y | 14.00 | 16.25 |
| 2×9 | TJC8-2.0-S-18Y | 16.00 | 18.25 |
| 2×10 | TJC8-2.0-S-20Y | 18.00 | 20.25 |
| 2×11 | TJC8-2.0-S-22Y | 20.00 | 22.25 |
| 2×12 | TJC8-2.0-S-24Y | 22.00 | 24.25 |
| 2×13 | TJC8-2.0-S-26Y | 24.00 | 26.25 |
| ~ | ~ | ~ | ~ |
| 2×20 | TJC8-2.0-S-40Y | 38.00 | 40.25 |
