| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | PBTUL94-V0(2) |
| 針座 | PBTUL94-V0(2) |

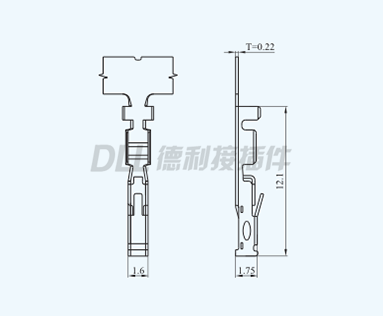

| 端子 | 磷青銅,鍍錫/金 |
參考圖紙
Rosh
MSDS

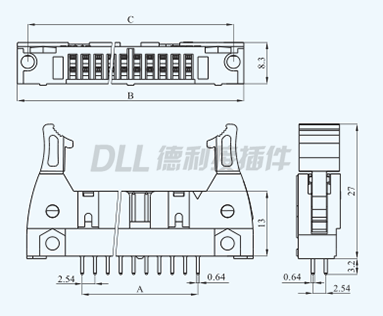

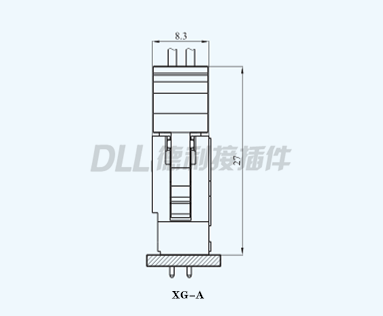

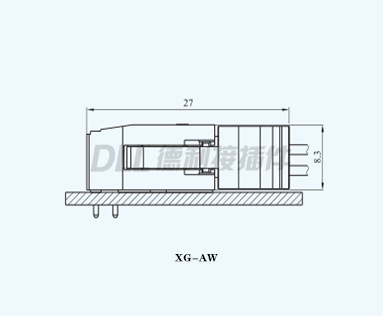

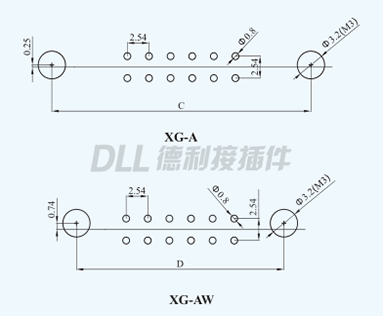

| 電路 | 類型 | 尺寸 | ||||
| A | B | C | D | |||
| 2x2 |
XG-4A/XG-4AW |
2.54 | 12.68 | 20.30 | 14.22 | |
| 2x3 |
XG-4A/XG-6AW |
5.08 | 15.22 | 22.90 | 16.76 | |
| 2x4 |
XG-4A/XG-8AW |
7.62 | 17.76 | 25.40 | 19.30 | |
| 2x5 |
XG-4A/XG-10AW |
10.16 | 20.30 | 27.90 | 21.84 | |
| 2x6 |
XG-4A/XG-12AW |
12.70 | 22.84 | 30.50 | 24.38 | |
| 2x7 |
XG-4A/XG-14AW |
15.24 | 25.38 | 33.00 | 26.92 | |
| 2x8 |
XG-4A/XG-16AW |
17.78 | 27.92 | 35.60 | 29.46 | |
| 2x9 |
XG-4A/XG-18AW |
20.32 | 30.46 | 38.10 | 32.00 | |
| 2x10 |
XG-4A/XG-20AW |
22.86 | 33.00 | 40.60 | 34.54 | |
| 2x11 |
XG-4A/XG-22AW |
25.40 | 35.54 | 43.20 | 37.08 | |
| ~ |
~ |
~ | ~ | ~ | ~ | |
| 2x32 |
XG-4A/XG-40AW |
78.74 | 88.88 | 96.50 | 90.42 | |

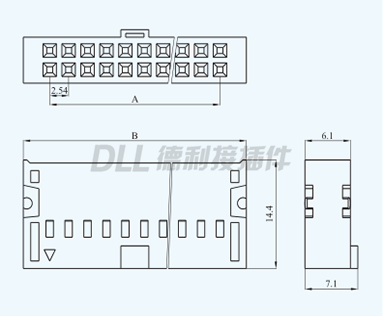

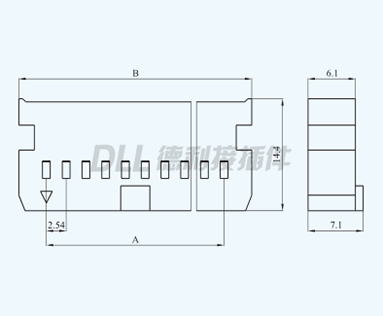

| 電路 | 類型 | 尺寸 | ||
| A | B | |||
| 2x2 | XG-4Y/XN-4Y | 2.54 | 9.64 | |
| 2x3 | XG-6Y/XN-6Y | 5.08 | 12.18 | |
| 2x4 | XG-8Y/XN-8Y | 7.62 | 14.72 | |
| 2x5 | XG-10Y/XN-10Y | 10.16 | 17.26 | |
| 2x6 | XG-12Y/XN-12Y | 12.70 | 19.80 | |
| 2x7 | XG-14Y/XN-14Y | 15.24 | 22.34 | |
| 2x8 | XG-16Y/XN-16Y | 17.78 | 24.88 | |
| 2x9 | XG-18Y/XN-18Y | 20.32 | 27.42 | |
| 2x10 | XG-20Y/XN-20Y | 22.86 | 29.96 | |
| 2x11 | XG-22Y/XN-22Y | 25.40 | 32.50 | |
| ~ | ~ | ~ | ~ | |
| 2x32 | XG-64Y/XN-64Y | 78.74 | 85.84 | |
