DL25414-Y(XN-Y)

DL25413-Y(XG-Y)

DL25413-YG(XG-YG)

DL25414-T(XN-T)

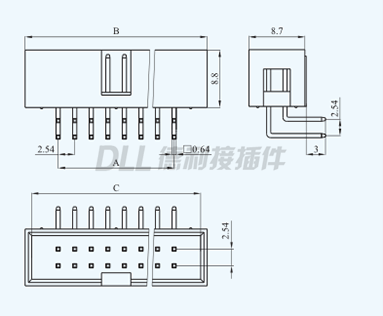

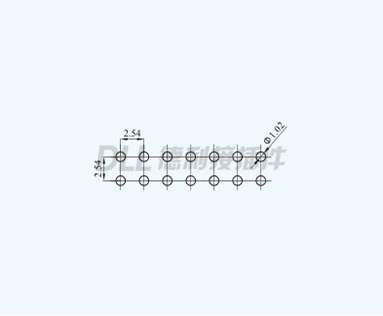

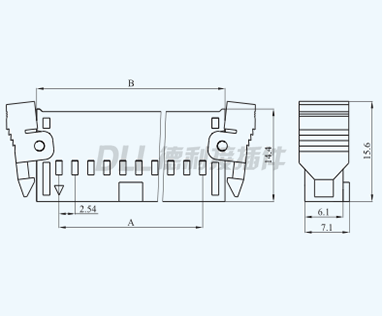

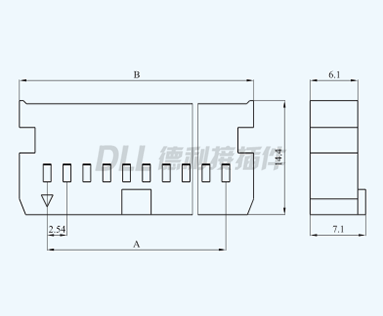

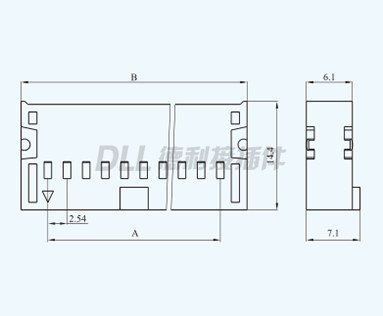

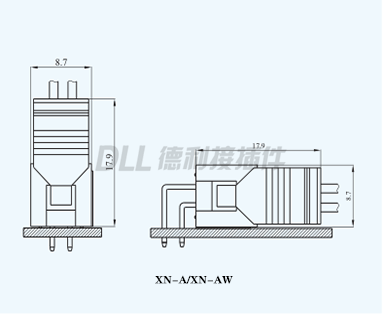

安裝尺寸

型號規(guī)格

電路	類型		尺寸(mm)
			A	B	C
2x2	XN-4A/XN-4AWT		2.54	12.68	10.68
2x3	XN-6A/XN-6AWT		5.08	15.22	13.22
2x4	XN-8A/XN-8AWT		7.62	17.76	15.76
2x5	XN-10A/XN-10AWT		10.16	20.30	18.30
2x6	XN-12A/XN-12AWT		12.70	22.84	20.84
2x7	XN-14A/XN-14AWT		15.24	25.38	23.38
2x8	XN-16A/XN-16AWT		17.78	27.92	25.92
2x9	XN-18A/XN-18AWT		20.32	30.46	28.46
2x10	XN-20A/XN-20AWT		22.86	33.00	31.00
2x11	XN-22A/XN-22AWT		25.40	35.54	33.54
2x12	XN-24A/XN-24AWT		27.94	38.08	36.08
2x13	XN-26A/XN-26AWT		30.48	40.62	38.62
2x14	XN-28A/XN-28AWT		33.02	43.16	41.16
~	~		~	~	~
2x32	XN-64A/XN-64AWT		78.74	88.88	86.88
