| 技術特性 | |
| 額定電壓 | 300V AC，DC |
| 額定電流 | 9A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1500V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

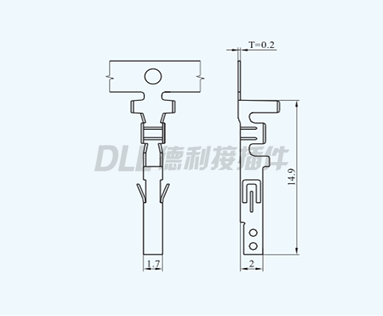

| 端子 | 磷青銅,鍍錫 |

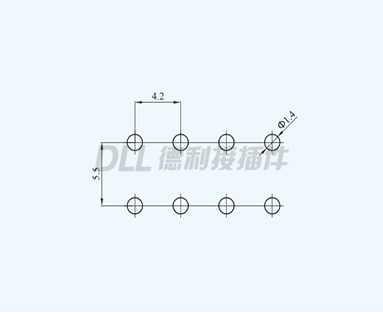

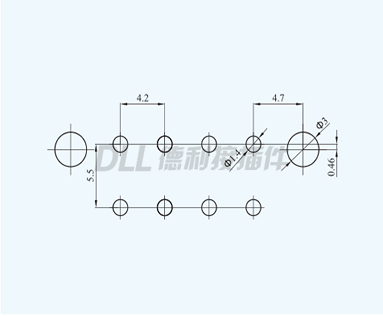

參考圖紙
Rosh
MSDS

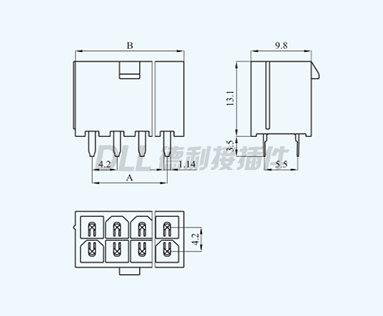

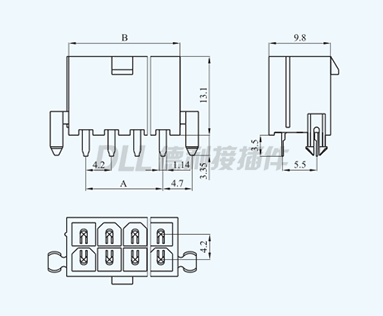

| 電路 | 類型 | 尺寸 | |
| A | B | ||

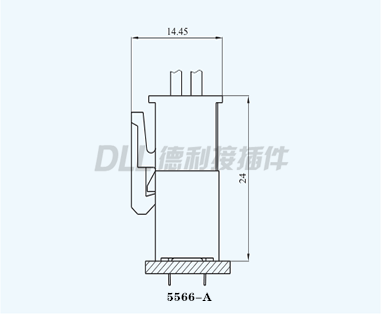

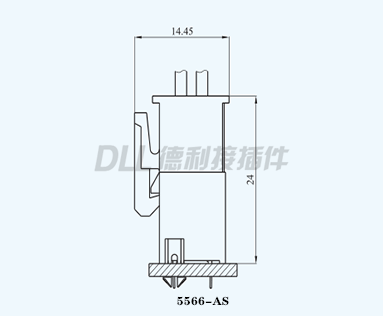

| 2x1 | 5566-2A/5566-2AS | / | 5.40 |
| 2x2 | 5566-4A/5566-4AS | 4.20 | 9.60 |
| 2x3 | 5566-6A/5566-6AS | 8.40 | 13.80 |
| 2x4 | 5566-8A/5566-8AS | 12.60 | 18.00 |
| 2x5 | 5566-10A/5566-10AS | 16.80 | 22.20 |
| 2x6 | 5566-12A/5566-12AS | 21.00 | 26.40 |
| 2x7 | 5566-14A/5566-14AS | 25.20 | 30.60 |
| 2x8 | 5566-16A/5566-16AS | 29.40 | 34.80 |
| 2x9 | 5566-18A/5566-18AS | 33.60 | 39.00 |
| 2x10 | 5566-20A/5566-20AS | 37.80 | 43.20 |
| 2x11 | 5566-22A/5566-22AS | 42.00 | 47.40 |
|
2x12 |
5566-24A/5566-24AS | 46.20 | 51.60 |

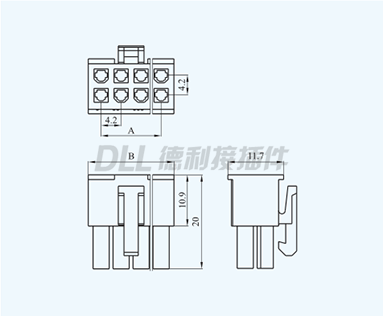

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2x1 | 5557-2Y | / | 5.40 |
| 2x2 | 5557-4Y | 4.20 | 9.60 |
| 2x3 | 5557-6Y | 8.40 | 13.80 |
| 2x4 | 5557-8Y | 12.60 | 18.00 |
| 2x5 | 5557-10Y | 16.80 | 22.20 |
| 2x6 | 5557-12Y | 21.00 | 26.40 |
| 2x7 | 5557-14Y | 25.20 | 30.60 |
| 2x8 | 5557-16Y | 29.40 | 34.80 |
| 2x9 | 5557-18Y | 33.60 | 39.00 |
| 2x10 | 5557-20Y | 37.80 | 43.20 |
| 2x11 | 5557-22Y | 42.00 | 47.40 |
| 2x12 | 5557-24Y | 46.20 | 51.60 |
