| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

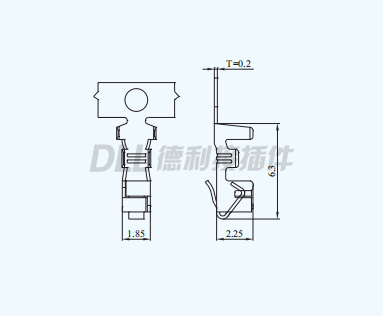

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

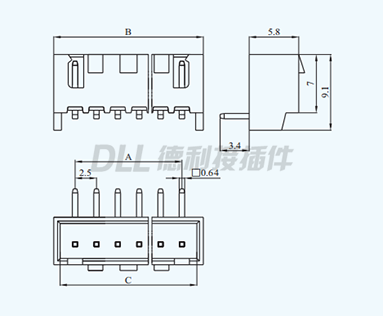

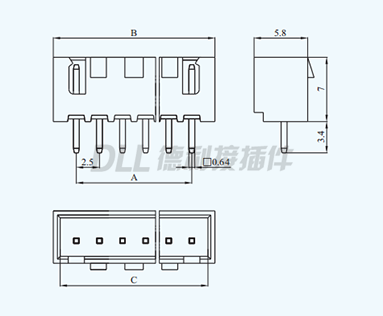

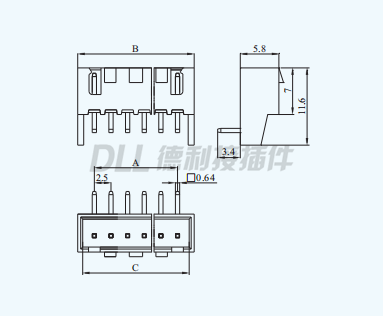

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3D-2AS/TJC3D-2AW/TJC3D-2AWD/TJC3D-2AF | 2.50 | 7.50 | 6.00 |
| 3 | TJC3D-3AS/TJC3D-3AW/TJC3D-3AWD/TJC3D-3AF | 5.00 | 10.00 | 8.50 |
| 4 | TJC3D-4AS/TJC3D-4AW/TJC3D-4AWD/TJC3D-4AF | 7.50 | 12.50 | 11.00 |
| 5 | TJC3D-5AS/TJC3D-5AW/TJC3D-5AWD/TJC3D-5AF | 10.00 | 15.00 | 13.50 |
| 6 | TJC3D-6AS/TJC3D-6AW/TJC3D-6AWD/TJC3D-6AF | 12.50 | 17.50 | 16.00 |
| 7 | TJC3D-7AS/TJC3D-7AW/TJC3D-7AWD/TJC3D-7AF | 15.00 | 20.00 | 18.50 |
| 8 | TJC3D-8AS/TJC3D-8AW/TJC3D-8AWD/TJC3D-8AF | 17.50 | 22.50 | 21.00 |
| 9 | TJC3D-9AS/TJC3D-9AW/TJC3D-9AWD/TJC3D-9AF | 20.00 | 25.00 | 23.50 |
| 10 | TJC3D-10AS/TJC3D-10AW/TJC3D-10AWD/TJC3D-10AF | 22.50 | 27.50 | 26.00 |
| 11 | TJC3D-11AS/TJC3D-11AW/TJC3D-11AWD/TJC3D-11AF | 25.00 | 30.00 | 28.50 |
| 12 | TJC3D-12AS/TJC3D-12AW/TJC3D-12AWD/TJC3D-12AF | 27.50 | 32.50 | 31.00 |
| 13 | TJC3D-13AS/TJC3D-13AW/TJC3D-13AWD/TJC3D-13AF | 30.00 | 35.00 | 33.50 |
| 14 | TJC3D-14AS/TJC3D-14AW/TJC3D-14AWD/TJC3D-14AF | 32.50 | 37.50 | 36.00 |
| 15 | TJC3D-15AS/TJC3D-15AW/TJC3D-15AWD/TJC3D-15AF | 35.00 | 40.00 | 38.50 |

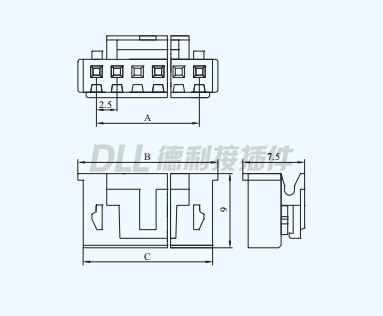

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3D-2Y | 2.50 | 7.00 | 5.70 |
| 3 | TJC3D-3Y | 5.00 | 9.50 | 8.20 |
| 4 | TJC3D-4Y | 7.50 | 12.00 | 10.70 |
| 5 | TJC3D-5Y | 10.00 | 14.50 | 13.20 |
| 6 | TJC3D-6Y | 12.50 | 17.00 | 15.70 |
| 7 | TJC3D-7Y | 15.00 | 19.50 | 18.20 |
| 8 | TJC3D-8Y | 17.50 | 22.00 | 20.70 |
| 9 | TJC3D-9Y | 20.00 | 24.50 | 23.20 |
| 10 | TJC3D-10Y | 22.50 | 27.00 | 25.70 |
| 11 | TJC3D-11Y | 25.00 | 29.50 | 28.20 |
| 12 | TJC3D-12Y | 27.50 | 32.00 | 30.70 |
| 13 | TJC3D-13Y | 30.00 | 34.50 | 33.20 |
| 14 | TJC3D-14Y | 32.50 | 37.00 | 35.70 |
| 15 | TJC3D-15Y | 35.00 | 39.50 | 38.20 |
