| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

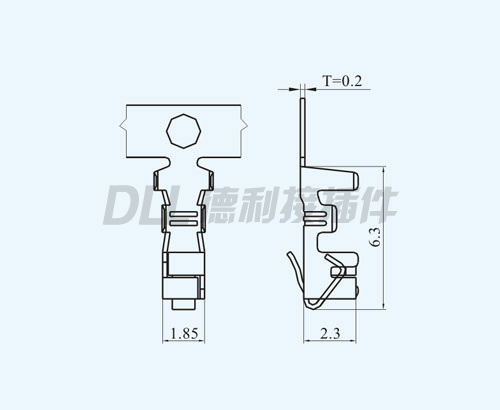

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

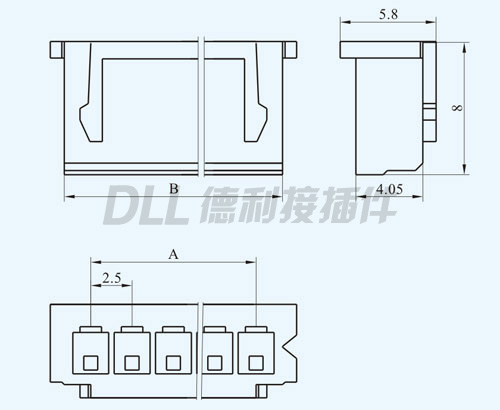

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | TJC3-2Y | 2.50 | 5.70 |
| 3 | TJC3-3Y | 5.00 | 8.20 |
| 4 | TJC3-4Y | 7.50 | 10.70 |
| 5 | TJC3-5Y | 10.00 | 13.20 |
| 6 | TJC3-6Y | 12.50 | 15.70 |
| 7 | TJC3-7Y | 15.00 | 18.20 |
| 8 | TJC3-8Y | 17.50 | 20.70 |
| 9 | TJC3-9Y | 20.00 | 23.20 |
| 10 | TJC3-10Y | 22.50 | 25.70 |
| 11 | TJC3-11Y | 25.00 | 28.20 |
| 12 | TJC3-12Y | 27.50 | 30.70 |
| 13 | TJC3-13Y | 30.00 | 33.20 |
| 14 | TJC3-14Y | 32.50 | 35.70 |
| 15 | TJC3-15Y | 35.00 | 38.20 |
| ~ | ~ | ~ | ~ |
| 20 | TJC3-20Y | 47.50 | 50.70 |

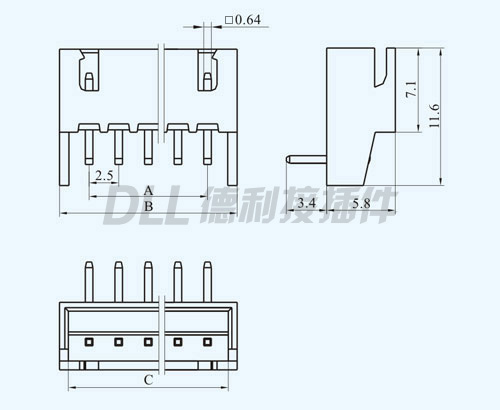

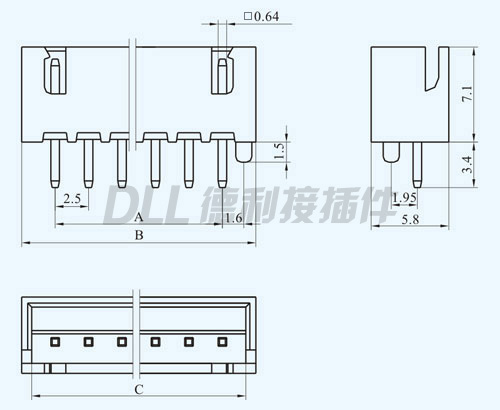

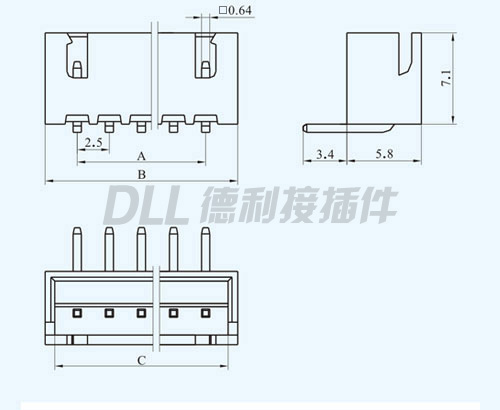

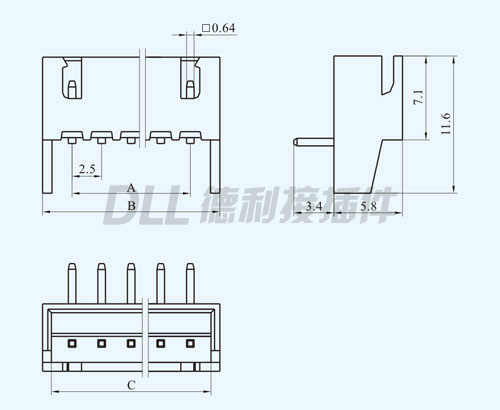

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3-2A/TJC3-2AS/TJC3-2AW/TJC3-2AWD/TJC3-2AWF | 2.50 | 7.50 | 6.00 |
| 3 | TJC3-3A/TJC3-3AS/TJC3-3AW/TJC3-3AWD/TJC3-3AWF | 5.00 | 10.0 | 8.50 |
| 4 | TJC3-4A/TJC3-4AS/TJC3-4AW/TJC3-4AWD/TJC3-4AWF | 7.50 | 12.50 | 11.00 |
| 5 | TJC3-5A/TJC3-5AS/TJC3-5AW/TJC3-5AWD/TJC3-5AWF | 10.00 | 15.00 | 13.50 |
| 6 | TJC3-6A/TJC3-6AS/TJC3-6AW/TJC3-6AWD/TJC3-6AWF | 12.50 | 17.50 | 16.00 |
| 7 | TJC3-7A/TJC3-7AS/TJC3-7AW/TJC3-7AWD/TJC3-7AWF | 15.00 | 20.00 | 18.50 |
| 8 | TJC3-8A/TJC3-8AS/TJC3-8AW/TJC3-8AWD/TJC3-8AWF | 17.50 | 22.50 | 21.00 |
| 9 | TJC3-9A/TJC3-9AS/TJC3-9AW/TJC3-9AWD/TJC3-9AWF | 20.00 | 25.00 | 23.50 |
| 10 | TJC3-10A/TJC3-10AS/TJC3-10AW/TJC3-10AWD/TJC3-10AWF | 22.50 | 27.50 | 26.00 |
| 11 | TJC3-11A/TJC3-11AS/TJC3-11AW/TJC3-11AWD/TJC3-11AWF | 25.00 | 30.00 | 28.50 |
| 12 | TJC3-12A/TJC3-12AS/TJC3-12AW/TJC3-12AWD/TJC3-12AWF | 27.50 | 32.50 | 31.00 |
| 13 | TJC3-13A/TJC3-13AS/TJC3-13AW/TJC3-13AWD/TJC3-13AWF | 30.00 | 35.00 | 33.50 |
| 14 | TJC3-14A/TJC3-14AS/TJC3-14AW/TJC3-14AWD/TJC3-14AWF | 32.50 | 37.50 | 36.00 |
| 15 | TJC3-15A/TJC3-15AS/TJC3-15AW/TJC3-15AWD/TJC3-15AWF | 35.00 | 40.00 | 38.50 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | TJC3-20A/TJC3-20AS/TJC3-20AW/TJC3-2AWD/TJC3-20AWF | 47.50 | 52.50 | 51.00 |
