| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

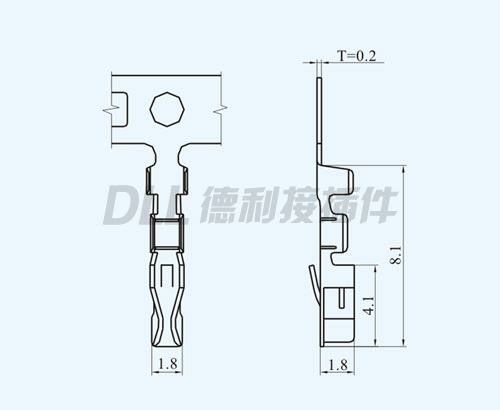

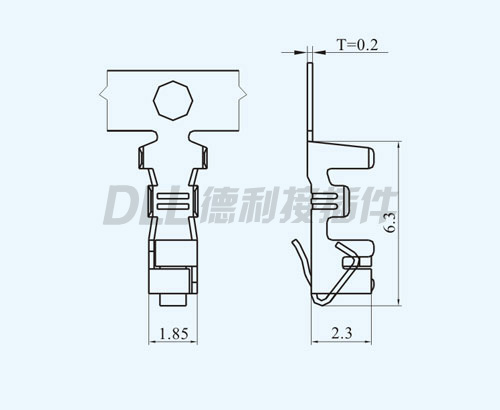

| 端子 | 磷青銅,鍍錫 |

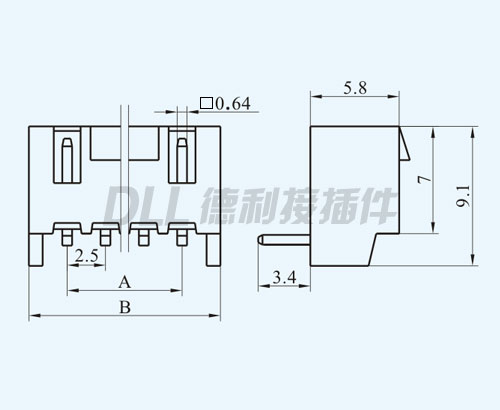

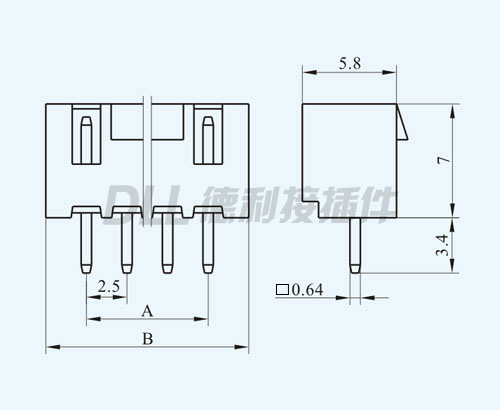

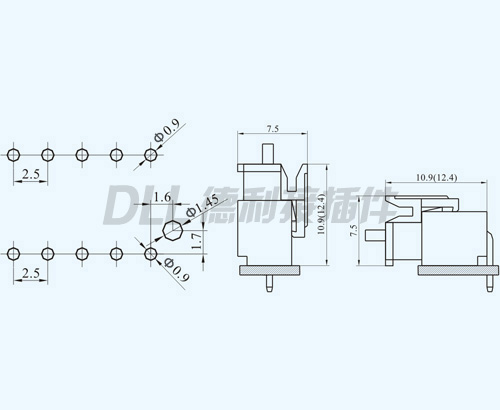

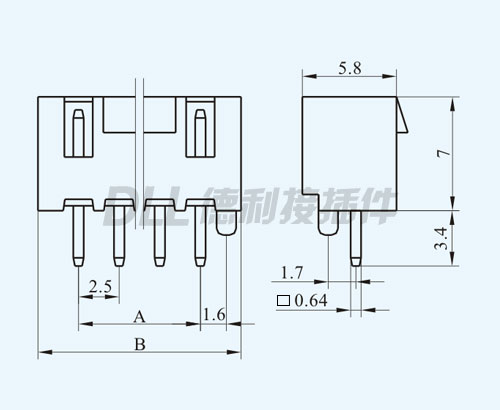

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-2A/TJC3B-2AS/TJC3B-2AW/TJC3B-2AWD/TJC3B-2AWF | 2.50 | 7.50 | 7.30 |
| 3 | TJC3B-3A/TJC3B-3AS/TJC3B-3AW/TJC3B-3AWD/TJC3B-3AWF | 5.00 | 10.00 | 9.80 |
| 4 | TJC3B-4A/TJC3B-4AS/TJC3B-4AW/TJC3B-4AWD/TJC3B-4AWF | 7.50 | 12.50 | 12.30 |
| 5 | TJC3B-5A/TJC3B-5AS/TJC3B-5AW/TJC3B-5AWD/TJC3B-5AWF | 10.00 | 15.00 | 14.80 |
| 6 | TJC3B-6A/TJC3B-6AS/TJC3B-6AW/TJC3B-6AWD/TJC3B-6AWF | 12.50 | 17.50 | 17.30 |
| 7 | TJC3B-7A/TJC3B-7AS/TJC3B-7AW/TJC3B-7AWD/TJC3B-7AWF | 15.00 | 20.00 | 19.80 |
| 8 | TJC3B-8A/TJC3B-8AS/TJC3B-8AW/TJC3B-8AWD/TJC3B-8AWF | 17.50 | 22.50 | 22.30 |
| 9 | TJC3B-9A/TJC3B-9AS/TJC3B-9AW/TJC3B-9AWD/TJC3B-9AWF | 20.00 | 25.00 | 24.80 |
| 10 | TJC3B-10A/TJC3B-10AS/TJC3B-10AW/TJC3B-10AWD/TJC3B-10AWF | 22.50 | 27.50 | 27.30 |
| 11 | TJC3B-11A/TJC3B-11AS/TJC3B-11AW/TJC3B-11AWD/TJC3B-11AWF | 25.00 | 30.00 | 29.80 |
| 12 | TJC3B-12A/TJC3B-12AS/TJC3B-12AW/TJC3B-12AWD/TJC3B-12AWF | 27.50 | 32.50 | 32.30 |
| 13 | TJC3B-13A/TJC3B-13AS/TJC3B-13AW/TJC3B-13AWD/TJC3B-13AWF | 30.00 | 35.00 | 34.80 |
| 14 | TJC3B-14A/TJC3B-14AS/TJC3B-14AW/TJC3B-14AWD/TJC3B-14AWF | 32.50 | 37.50 | 37.30 |
| 15 | TJC3B-15A/TJC3B-15AS/TJC3B-15AW/TJC3B-15AWD/TJC3B-15AWF | 35.00 | 40.00 | 39.80 |

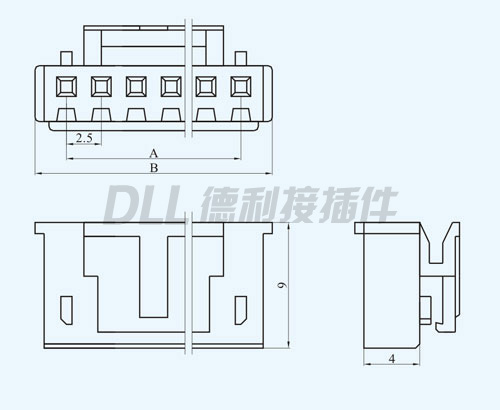

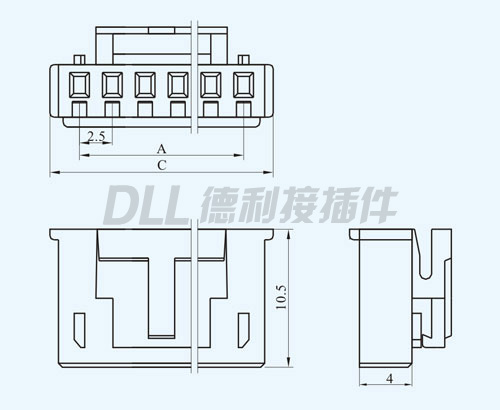

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-2Y/TJC3B-H-2Y | 2.50 | 7.00 | 7.30 |
| 3 | TJC3B-3Y/TJC3B-H-3Y | 5.00 | 9.50 | 9.80 |
| 4 | TJC3B-4Y/TJC3B-H-4Y | 7.50 | 12.00 | 12.30 |
| 5 | TJC3B-5Y/TJC3B-H-5Y | 10.00 | 14.50 | 14.80 |
| 6 | TJC3B-6Y/TJC3B-H-6Y | 12.50 | 17.00 | 17.30 |
| 7 | TJC3B-7Y/TJC3B-H-7Y | 15.00 | 19.50 | 19.80 |
| 8 | TJC3B-8Y/TJC3B-H-8Y | 17.50 | 22.00 | 22.30 |
| 9 | TJC3B-9Y/TJC3B-H-9Y | 20.00 | 24.50 | 24.80 |
| 10 | TJC3B-10Y/TJC3B-H-10Y | 22.50 | 27.00 | 27.30 |
| 11 | TJC3B-11Y/TJC3B-H-11Y | 25.00 | 29.50 | 29.80 |
| 12 | TJC3B-12Y/TJC3B-H-12Y | 27.50 | 32.00 | 32.30 |
| 13 | TJC3B-13Y/TJC3B-H-13Y | 30.00 | 34.50 | 34.80 |
| 14 | TJC3B-14Y/TJC3B-H-14Y | 32.50 | 37.00 | 37.30 |
| 15 | TJC3B-15Y/TJC3B-H-15Y | 35.00 | 39.50 | 39.80 |
