| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

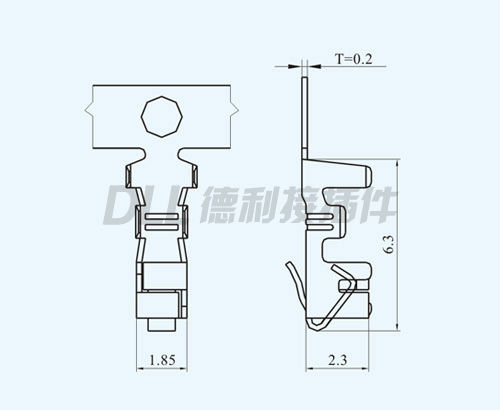

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

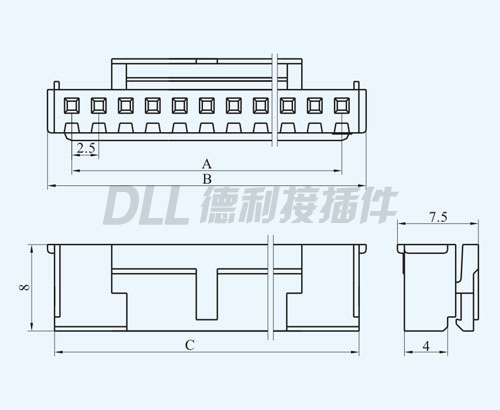

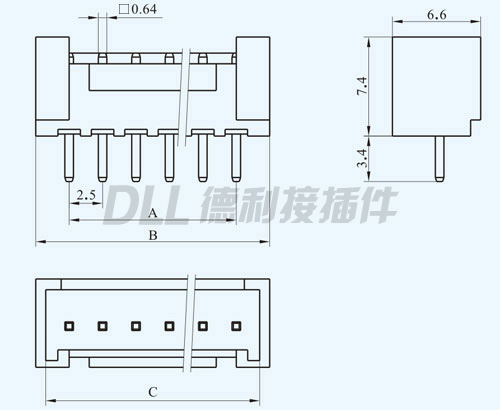

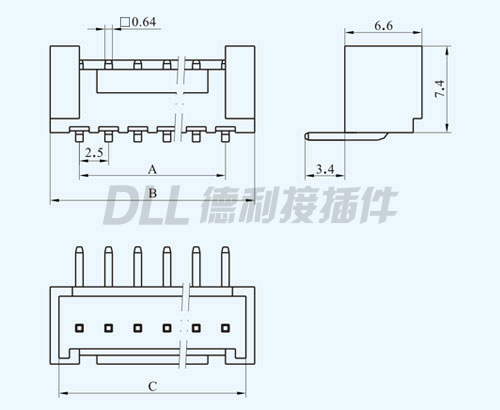

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3C-2A/TJC3C-2AW | 2.50 | 7.50 | 6.00 |
| 3 | TJC3C-3A/TJC3C-3AW | 5.00 | 10.00 | 8.50 |
| 4 | TJC3C-4A/TJC3C-4AW | 7.50 | 12.50 | 11.00 |
| 5 | TJC3C-5A/TJC3C-5AW | 10.00 | 15.00 | 13.50 |
| 6 | TJC3C-6A/TJC3C-6AW | 12.50 | 17.50 | 16.00 |
| 7 | TJC3C-7A/TJC3C-7AW | 15.00 | 20.00 | 18.50 |
| 8 | TJC3C-8A/TJC3C-8AW | 17.50 | 22.50 | 21.00 |
| 9 | TJC3C-9A/TJC3C-9AW | 20.00 | 25.00 | 23.50 |
| 10 | TJC3C-10A/TJC3C-10AW | 22.50 | 27.50 | 26.00 |
| 11 | TJC3C-11A/TJC3C-11AW | 25.00 | 30.00 | 28.50 |
| 12 | TJC3C-12A/TJC3C-12AW | 27.50 | 32.50 | 31.00 |
| 13 | TJC3C-13A/TJC3C-13AW | 30.00 | 35.00 | 33.50 |
| 14 | TJC3C-14A/TJC3C-14AW | 32.50 | 37.50 | 36.00 |
| 15 | TJC3C-15A/TJC3C-15AW | 35.00 | 40.00 | 38.50 |
| 16 | TJC3C-16A/TJC3C-16AW | 37.50 | 42.50 | 41.00 |
| 17 | TJC3C-17A/TJC3C-17AW | 40.00 | 45.00 | 43.50 |
| 18 | TJC3C-18A/TJC3C-18AW | 42.50 | 47.50 | 46.00 |
| 19 | TJC3C-19A/TJC3C-19AW | 45.00 | 50.00 | 48.50 |
| 20 | TJC3C-20A/TJC3C-20AW | 47.50 | 52.50 | 51.00 |
| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3C-2Y | 2.50 | 7.10 | 5.80 |
| 3 | TJC3C-3Y | 5.00 | 9.60 | 8.30 |
| 4 | TJC3C-4Y | 7.50 | 12.10 | 10.80 |
| 5 | TJC3C-5Y | 10.00 | 14.60 | 13.30 |
| 6 | TJC3C-6Y | 12.50 | 17.10 | 15.80 |
| 7 | TJC3C-7Y | 15.00 | 19.60 | 18.30 |
| 8 | TJC3C-8Y | 17.50 | 22.10 | 20.80 |
| 9 | TJC3C-9Y | 20.00 | 24.60 | 23.30 |
| 10 | TJC3C-10Y | 22.50 | 27.10 | 25.80 |
| 11 | TJC3C-11Y | 25.00 | 29.60 | 28.30 |
| 12 | TJC3C-12Y | 27.50 | 32.10 | 30.80 |
| 13 | TJC3C-13Y | 30.00 | 34.60 | 33.30 |
| 14 | TJC3C-14Y | 32.50 | 37.10 | 35.80 |
| 15 | TJC3C-15Y | 35.00 | 39.60 | 38.30 |
| 16 | TJC3C-16Y | 37.50 | 42.10 | 40.80 |
| 17 | TJC3C-17Y | 40.00 | 44.60 | 43.30 |
| 18 | TJC3C-18Y | 42.50 | 47.10 | 45.80 |
| 19 | TJC3C-19Y | 45.00 | 49.60 | 48.30 |
| 20 | TJC3C-20Y | 47.50 | 52.10 | 50.80 |
