| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

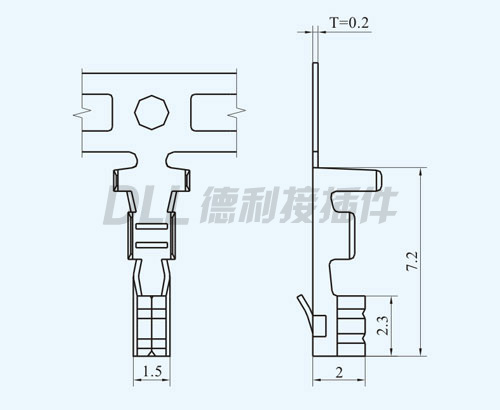

| 端子 | 磷青銅,鍍錫 |

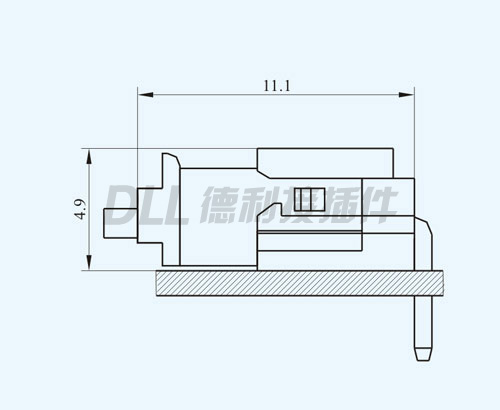

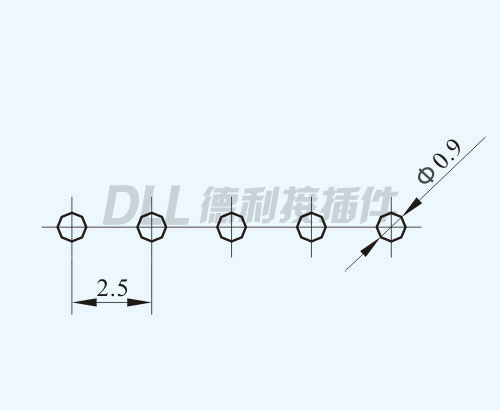

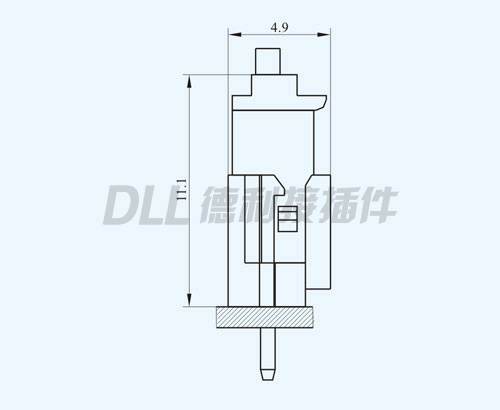

參考圖紙
Rosh
MSDS

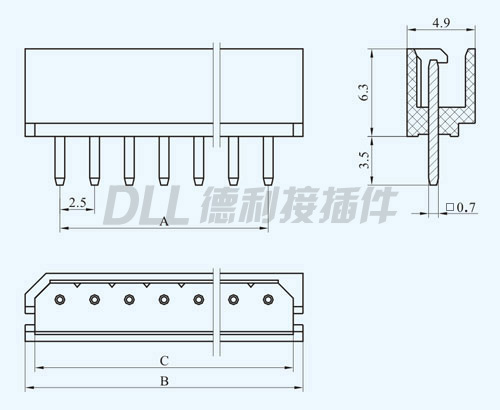

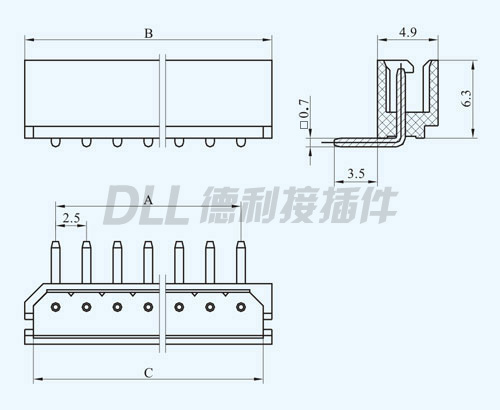

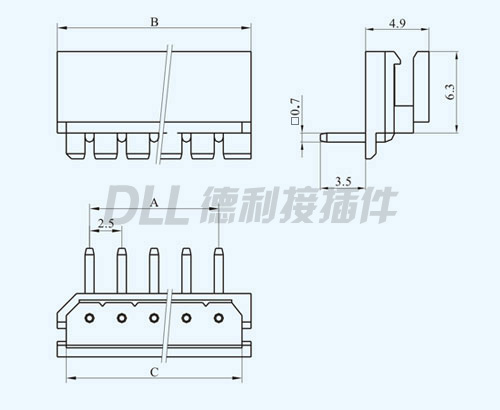

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | 5264-2A/5264-2AW/5264-2AWD | 2.50 | 7.40 | 6.10 |
| 3 | 5264-3A/5264-3AW/5264-3AWD | 5.00 | 9.90 | 8.60 |
| 4 | 5264-4A/5264-4AW/5264-4AWD | 7.50 | 12.40 | 11.10 |
| 5 | 5264-5A/5264-5AW/5264-5AWD | 10.00 | 14.90 | 13.60 |
| 6 | 5264-6A/5264-6AW/5264-6AWD | 12.50 | 17.40 | 16.10 |
| 7 | 5264-7A/5264-7AW/5264-7AWD | 15.00 | 19.90 | 18.60 |
| 8 | 5264-8A/5264-8AW/5264-8AWD | 17.50 | 22.40 | 21.10 |
| 9 | 5264-9A/5264-9AW/5264-9AWD | 20.00 | 24.90 | 23.60 |
| 10 | 5264-10A/5264-10AW/5264-10AWD | 22.50 | 27.40 | 26.10 |
| 11 | 5264-11A/5264-11AW/5264-11AWD | 25.00 | 29.90 | 28.60 |
| 12 | 5264-12A/5264-12AW/5264-12AWD | 27.50 | 32.40 | 31.10 |
| 13 | 5264-13A/5264-13AW/5264-13AWD | 30.00 | 34.90 | 33.60 |
| 14 | 5264-14A/5264-14AW/5264-14AWD | 32.50 | 37.40 | 36.10 |
| 15 | 5264-15A/5264-15AW/5264-15AWD | 35.00 | 39.90 | 38.60 |

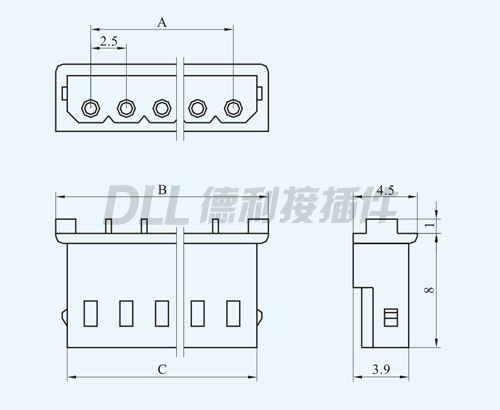

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | 5264-2Y | 2.50 | 7.50 | 5.80 |
| 3 | 5264-3Y | 5.00 | 10.00 | 8.30 |
| 4 | 5264-4Y | 7.50 | 12.50 | 10.80 |
| 5 | 5264-5Y | 10.00 | 15.00 | 13.30 |
| 6 | 5264-6Y | 12.50 | 17.50 | 15.80 |
| 7 | 5264-7Y | 15.00 | 20.00 | 18.30 |
| 8 | 5264-8Y | 17.50 | 22.50 | 20.80 |
| 9 | 5264-9Y | 20.00 | 25.00 | 23.30 |
| 10 | 5264-10Y | 22.50 | 27.50 | 25.80 |
| 11 | 5264-11Y | 25.00 | 30.00 | 28.30 |
| 12 | 5264-12Y | 27.50 | 32.50 | 30.80 |
| 13 | 5264-13Y | 30.00 | 35.00 | 33.30 |
| 14 | 5264-14Y | 32.50 | 37.50 | 35.80 |
| 15 | 5264-15Y | 35.00 | 40.00 | 38.30 |
