| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

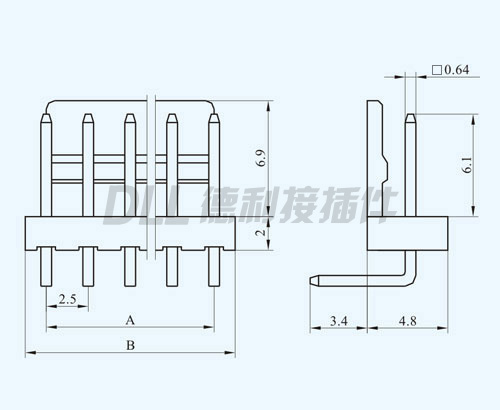

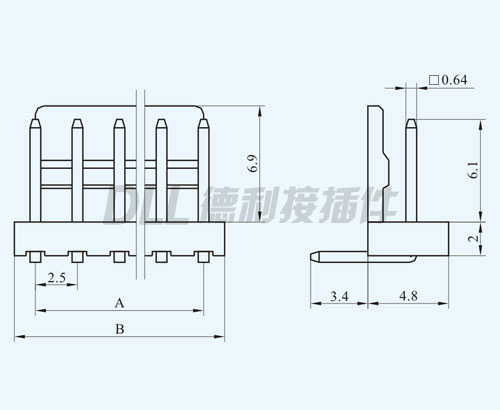

參考圖紙
Rosh
MSDS

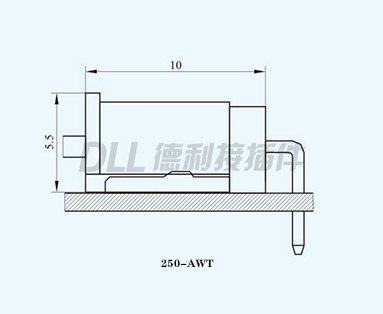

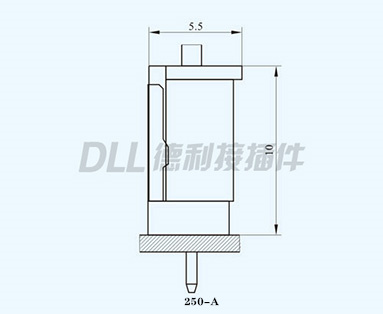

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | 250-2A/250-2AW/250-2AWT | 2.50 | 5.00 |
| 3 | 250-3A/250-3AW/250-3AWT | 5.00 | 7.50 |
| 4 | 250-4A/250-4AW/250-4AWT | 7.50 | 10.00 |
| 5 | 250-5A/250-5AW/250-5AWT | 10.00 | 12.50 |
| 6 | 250-6A/250-6AW/250-6AWT | 12.50 | 15.00 |
| 7 | 250-7A/250-7AW/250-7AWT | 15.00 | 17.50 |
| 8 | 250-8A/250-8AW/250-8AWT | 17.50 | 20.00 |
| 9 | 250-9A/250-9AW/250-9AWT | 20.00 | 22.50 |
| 10 | 250-10A/250-10AW/250-10AWT | 22.50 | 25.00 |
| 11 | 250-11A/250-11AW/250-11AWT | 25.00 | 27.50 |
| 12 | 250-12A/250-12AW/250-12AWT | 27.50 | 30.00 |
| 13 | 250-13A/250-13AW/250-13AWT | 30.00 | 32.50 |
| 14 | 250-14A/250-14AW/250-14AWT | 32.50 | 35.00 |
| 15 | 250-15A/250-15AW/250-15AWT | 35.00 | 37.50 |

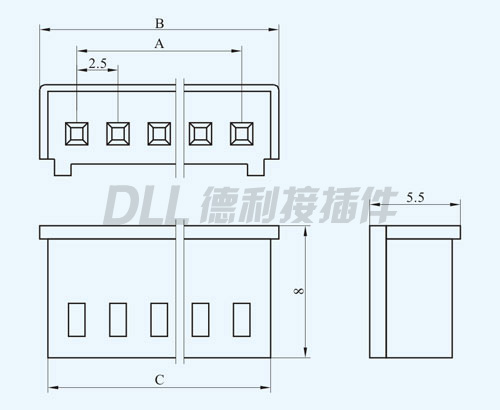

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | 250-2Y | 2.50 | 7.00 | 6.00 |
| 3 | 250-3Y | 5.00 | 9.50 | 8.50 |
| 4 | 250-4Y | 7.50 | 12.00 | 11.00 |
| 5 | 250-5Y | 10.00 | 14.50 | 13.50 |
| 6 | 250-6Y | 12.50 | 17.00 | 16.00 |
| 7 | 250-7Y | 15.00 | 19.50 | 18.50 |
| 8 | 250-8Y | 17.50 | 22.00 | 21.00 |
| 9 | 250-9Y | 20.00 | 24.50 | 23.50 |
| 10 | 250-10Y | 22.50 | 27.00 | 26.00 |
| 11 | 250-11Y | 25.00 | 29.50 | 28.50 |
| 12 | 250-12Y | 27.50 | 32.00 | 31.00 |
| 13 | 250-13Y | 30.00 | 34.50 | 33.50 |
| 14 | 250-14Y | 32.50 | 37.00 | 36.00 |
| 15 | 250-15Y | 35.00 | 39.50 | 38.50 |
