| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#28~#22 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |

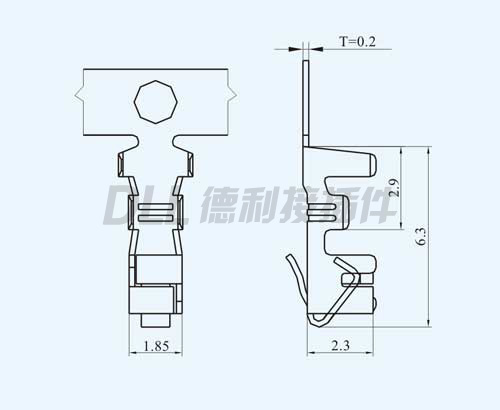

| 端子 | 磷青銅,鍍錫 |

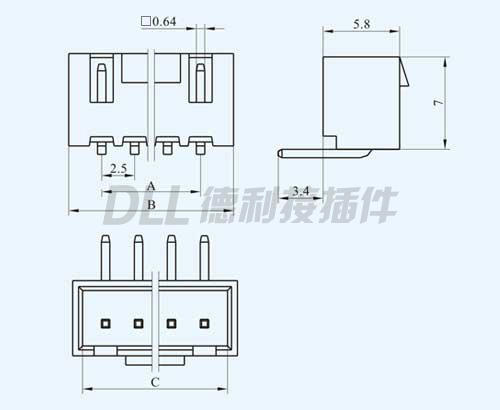

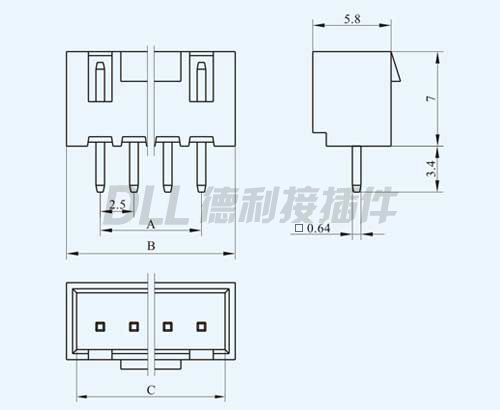

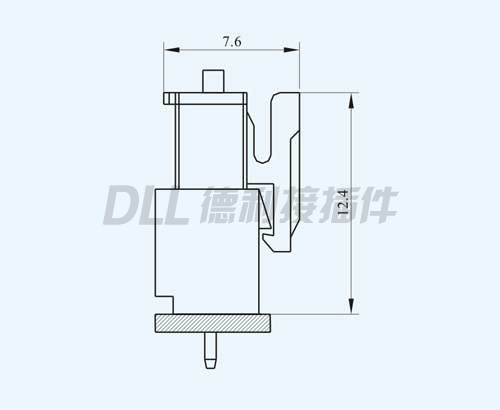

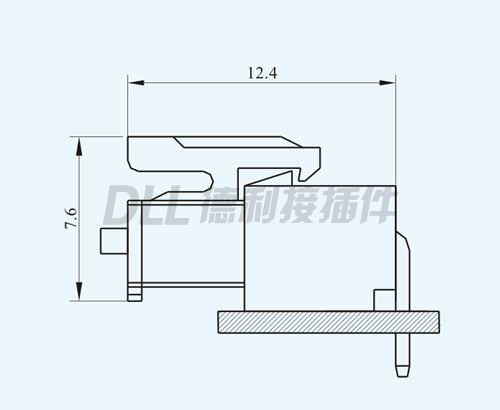

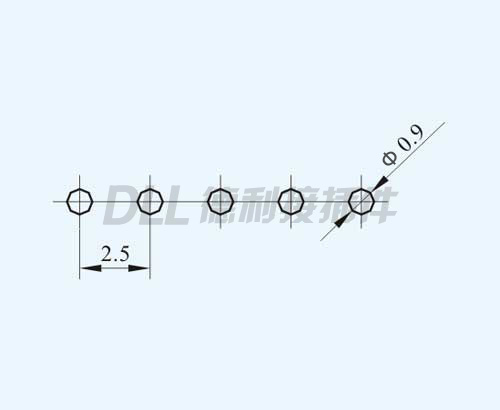

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | HA-2A/HA-2AW | 2.50 | 7.50 | 6.00 |
| 3 | HA-3A/HA-3AW | 5.00 | 10.00 | 8.50 |
| 4 | HA-4A/HA-4AW | 7.50 | 12.50 | 11.00 |
| 5 | HA-5A/HA-5AW | 10.00 | 15.00 | 13.50 |
| 6 | HA-6A/HA-6AW | 12.50 | 17.50 | 16.00 |
| 7 | HA-7A/HA-7AW | 15.00 | 20.00 | 18.50 |
| 8 | HA-8A/HA-8AW | 17.50 | 22.50 | 21.00 |
| 9 | HA-9A/HA-9AW | 20.00 | 25.00 | 23.50 |
| 10 | HA-10A/HA-10AW | 22.50 | 27.50 | 26.00 |
| 11 | HA-11A/HA-11AW | 25.00 | 30.00 | 28.50 |
| 12 | HA-12A/HA-12AW | 27.50 | 32.50 | 31.00 |
| 13 | HA-13A/HA-13AW | 30.00 | 35.00 | 33.50 |
| 14 | HA-14A/HA-14AW | 32.50 | 37.50 | 36.00 |
| 15 | HA-15A/HA-15AW | 35.00 | 40.00 | 38.50 |
| 16 | HA-16A/HA-16AW | 37.50 | 42.50 | 41.00 |
| 17 | HA-17A/HA-17AW | 40.00 | 45.00 | 43.50 |
| 18 | HA-18A/HA-18AW | 42.50 | 47.50 | 46.00 |
| 19 | HA-19A/HA-19AW | 45.00 | 50.00 | 48.50 |
| 20 | HA-20A/HA-20AW | 47.50 | 52.50 | 51.00 |

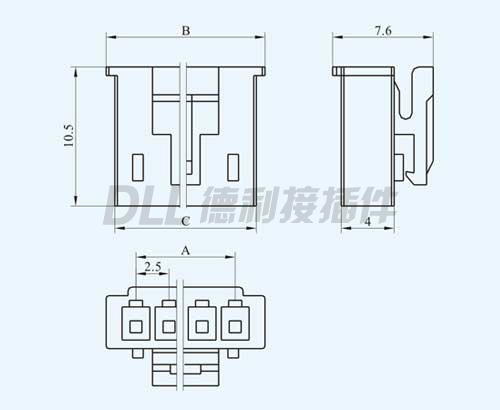

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | HA-2Y | 2.50 | 7.00 | 5.70 |
| 3 | HA-3Y | 5.00 | 9.50 | 8.20 |
| 4 | HA-4Y | 7.50 | 12.00 | 10.70 |
| 5 | HA-5Y | 10.00 | 14.50 | 13.20 |
| 6 | HA-6Y | 12.50 | 17.00 | 15.70 |
| 7 | HA-7Y | 15.00 | 19.50 | 18.20 |
| 8 | HA-8Y | 17.50 | 22.00 | 20.70 |
| 9 | HA-9Y | 20.00 | 24.50 | 23.20 |
| 10 | HA-10Y | 22.50 | 27.00 | 25.70 |
| 11 | HA-11Y | 25.00 | 29.50 | 28.20 |
| 12 | HA-12Y | 27.50 | 32.00 | 30.70 |
| 13 | HA-13Y | 30.00 | 34.50 | 33.20 |
| 14 | HA-14Y | 32.50 | 37.00 | 35.70 |
| 15 | HA-15Y | 35.00 | 39.50 | 38.20 |
| 16 | HA-16Y | 37.50 | 42.00 | 40.70 |
| 17 | HA-17Y | 40.00 | 44.50 | 43.20 |
| 18 | HA-18Y | 42.50 | 47.00 | 45.70 |
| 19 | HA-19Y | 45.00 | 49.50 | 48.20 |
| 20 | HA-20Y | 47.50 | 52.00 | 50.70 |
