| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#28?#22 |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |

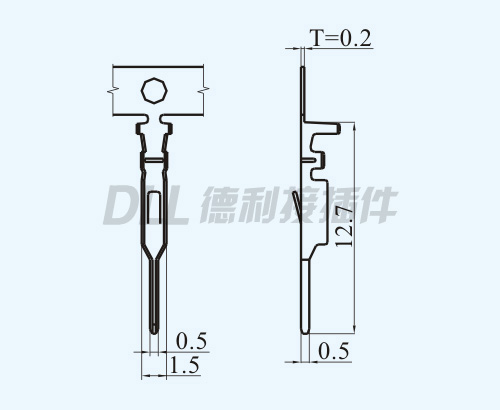

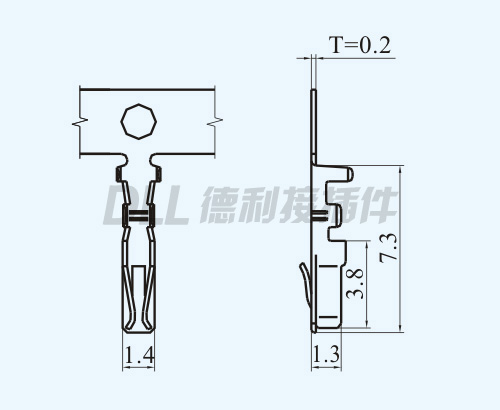

| 端子 | 磷青銅,鍍錫 |

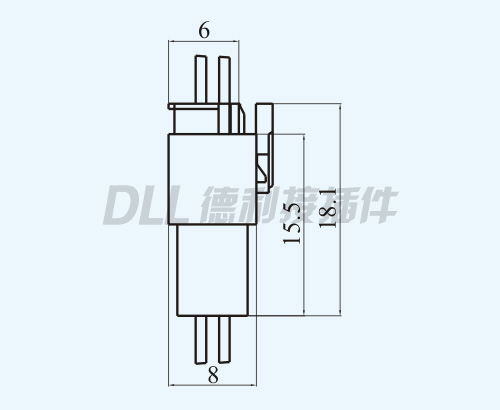

參考圖紙
Rosh
MSDS

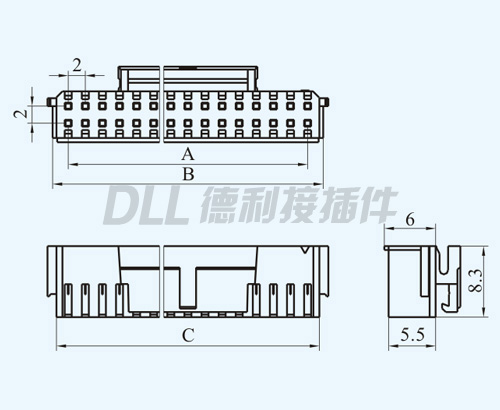

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2×2 | PHB-4Y | 2.0 | 5.65 | 4.70 |
| 2×3 | PHB-6Y | 4.0 | 7.65 | 6.70 |
| 2×4 | PHB-8Y | 6.0 | 9.65 | 8.70 |
| 2×5 | PHB-10Y | 8.0 | 11.65 | 10.70 |
| 2×6 | PHB-12Y | 10.0 | 13.65 | 12.70 |
| 2×7 | PHB-14Y | 12.0 | 15.65 | 14.70 |
| 2×8 | PHB-16Y | 14.0 | 17.65 | 16.70 |
| 2×9 | PHB-18Y | 16.0 | 19.65 | 18.70 |
| 2×10 | PHB-20Y | 18.0 | 21.65 | 20.70 |
| 2×11 | PHB-22Y | 20.0 | 23.65 | 22.70 |
| 2×12 | PHB-24Y | 22.0 | 25.65 | 24.70 |
| 2×13 | PHB-26Y | 24.0 | 27.65 | 26.70 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHB-60Y | 58.0 | 61.65 | 60.70 |
| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2×2 | PHB-4R | 2.0 | 8.40 | 4.80 |
| 2×3 | PHB-6R | 4.0 | 10.40 | 6.80 |
| 2×4 | PHB-8R | 6.0 | 12.40 | 8.80 |
| 2×5 | PHB-10R | 8.0 | 14.40 | 10.80 |
| 2×6 | PHB-12R | 10.0 | 16.40 | 12.80 |
| 2×7 | PHB-14R | 12.0 | 18.40 | 14.80 |
| 2×8 | PHB-16R | 14.0 | 20.40 | 16.80 |
| 2×9 | PHB-18R | 16.0 | 22.40 | 18.80 |
| 2×10 | PHB-20R | 18.0 | 24.40 | 20.80 |
| 2×11 | PHB-22R | 20.0 | 26.40 | 22.80 |
| 2×12 | PHB-24R | 22.0 | 28.40 | 24.80 |
| 2×13 | PHB-26R | 24.0 | 30.40 | 26.80 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHB-60R | 58.0 | 64.40 | 60.80 |
