| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

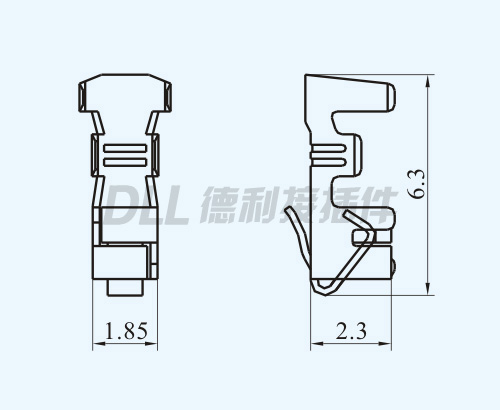

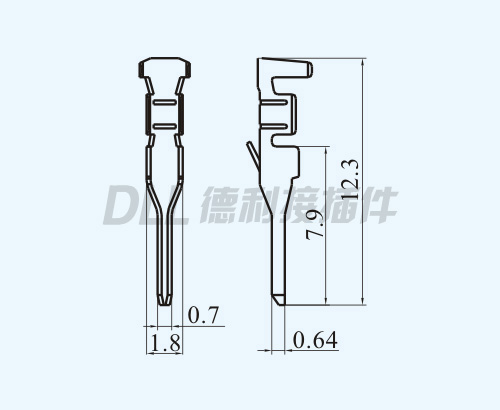

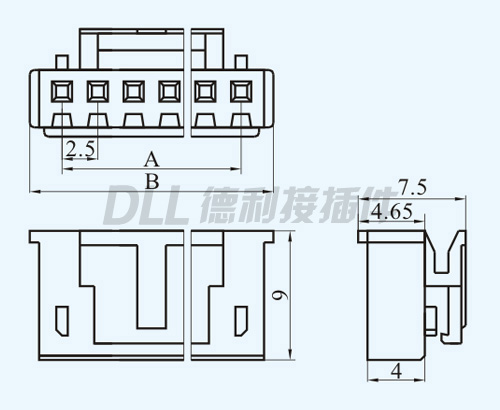

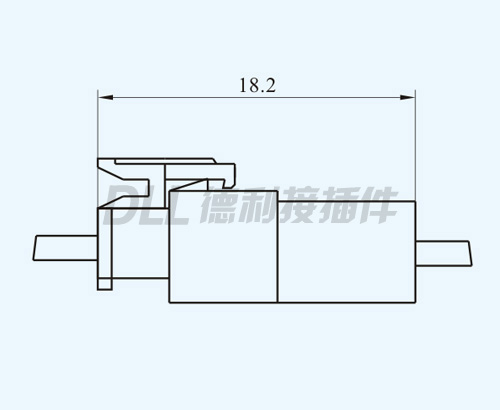

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | TJC3B-2Y | 2.5 | 7.0 |
| 3 | TJC3B-3Y | 5.0 | 9.5 |
| 4 | TJC3B-4Y | 7.5 | 12.0 |
| 5 | TJC3B-5Y | 10.0 | 14.5 |
| 6 | TJC3B-6Y | 12.5 | 17.0 |
| 7 | TJC3B-7Y | 15.0 | 19.5 |
| 8 | TJC3B-8Y | 17.5 | 22.0 |
| 9 | TJC3B-9Y | 20.0 | 24.5 |
| 10 | TJC3B-10Y | 22.5 | 27.0 |
| 11 | TJC3B-11Y | 25.0 | 29.5 |
| 12 | TJC3B-12Y | 27.5 | 32.0 |
| 13 | TJC3B-13Y | 30.0 | 34.5 |
| 14 | TJC3B-14Y | 32.5 | 37.0 |
| 15 | TJC3B-15Y | 35.0 | 39.5 |
| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | TJC3B-2R | 2.5 | 7.5 | 6.0 |
| 3 | TJC3B-3R | 5.0 | 10.5 | 8.5 |
| 4 | TJC3B-4R | 7.5 | 12.5 | 11.0 |
| 5 | TJC3B-5R | 10.5 | 15.0 | 13.5 |
| 6 | TJC3B-6R | 12.5 | 17.5 | 16.0 |
| 7 | TJC3B-7R | 15.0 | 20.0 | 18.5 |
| 8 | TJC3B-8R | 17.5 | 22.5 | 21.0 |
| 9 | TJC3B-9R | 20.0 | 25.0 | 23.5 |
| 10 | TJC3B-10R | 22.5 | 27.5 | 26.0 |
| 11 | TJC3B-11R | 25.0 | 30.0 | 28.5 |
| 12 | TJC3B-12R | 27.5 | 32.5 | 31.0 |
| 13 | TJC3B-13R | 30.0 | 35.0 | 33.5 |
| 14 | TJC3B-14R | 32.5 | 37.5 | 36.0 |
| 15 | TJC3B-15R | 35.0 | 40.0 | 38.5 |
