| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

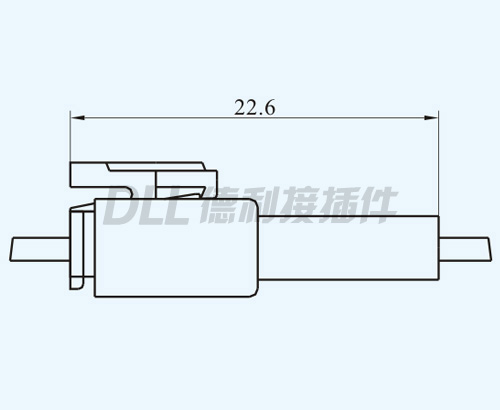

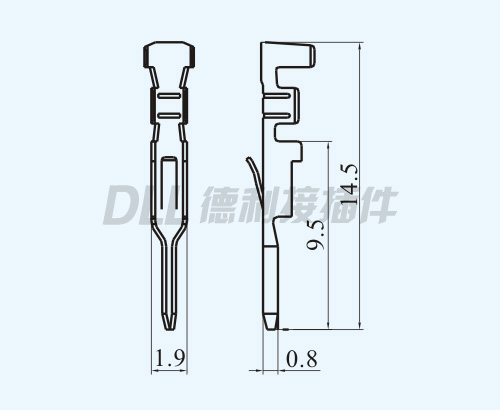

參考圖紙
Rosh
MSDS

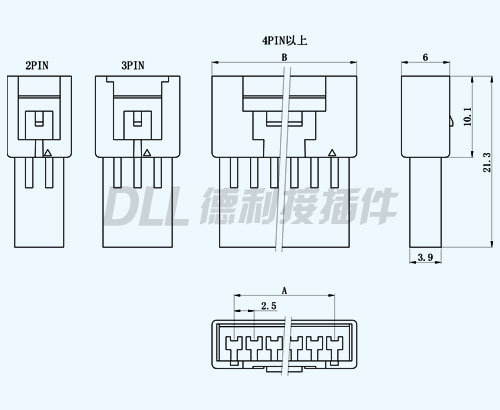

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3B-H-2Y | 2.5 | 7.3 | 5.7 |
| 3 | TJC3B-H-3Y | 5.0 | 9.8 | 8.2 |
| 4 | TJC3B-H-4Y | 7.5 | 12.3 | 10.7 |
| 5 | TJC3B-H-5Y | 10.5 | 14.8 | 13.2 |
| 6 | TJC3B-H-6Y | 12.5 | 17.3 | 15.7 |
| 7 | TJC3B-H-7Y | 15.0 | 19.8 | 18.2 |
| 8 | TJC3B-H-8Y | 17.5 | 22.3 | 20.7 |
| 9 | TJC3B-H-9Y | 20.0 | 24.8 | 23.2 |
| 10 | TJC3B-H-10Y | 22.5 | 27.3 | 25.7 |
| 11 | TJC3B-H-11Y | 25.0 | 29.8 | 28.2 |
| 12 | TJC3B-H-12Y | 27.5 | 32.3 | 30.7 |
| 13 | TJC3B-H-13Y | 30.0 | 34.8 | 33.2 |
| 14 | TJC3B-H-14Y | 32.5 | 37.3 | 35.7 |
| 15 | TJC3B-H-15Y | 35.0 | 39.8 | 38.2 |
| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | TJC3B-H-2R | 2.5 | 8.0 |
| 3 | TJC3B-H-3R | 5.0 | 10.5 |
| 4 | TJC3B-H-4R | 7.5 | 13.0 |
| 5 | TJC3B-H-5R | 10.0 | 15.5 |
| 6 | TJC3B-H-6R | 12.5 | 18.0 |
| 7 | TJC3B-H-7R | 15.0 | 20.5 |
| 8 | TJC3B-H-8R | 17.5 | 23.0 |
| 9 | TJC3B-H-9R | 20.0 | 25.5 |
| 10 | TJC3B-H-10R | 22.5 | 28.0 |
| 11 | TJC3B-H-11R | 25.0 | 30.5 |
| 12 | TJC3B-H-12R | 27.5 | 33.0 |
| 13 | TJC3B-H-13R | 30.0 | 35.5 |
| 14 | TJC3B-H-14R | 32.5 | 38.0 |
| 15 | TJC3B-H-15R | 35.0 | 40.5 |
