| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |
| 鎖扣 | 尼龍UL94-V0(2) |

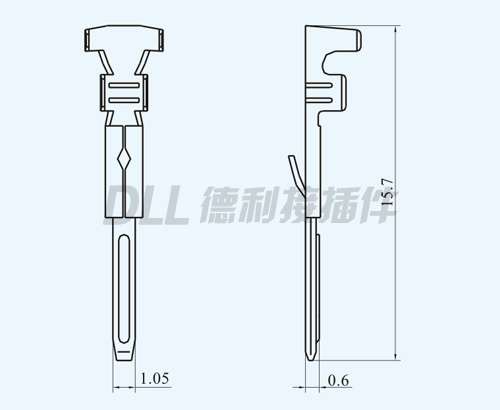

| 端子 | 磷青銅,鍍錫 |

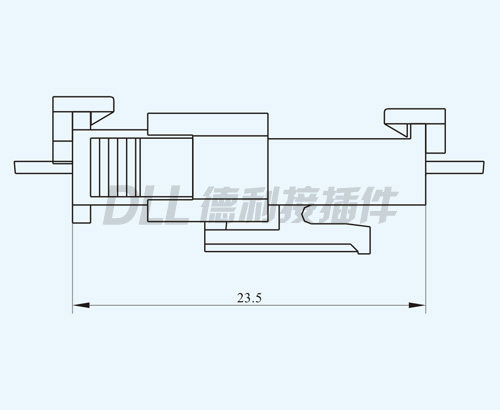

參考圖紙
Rosh
MSDS

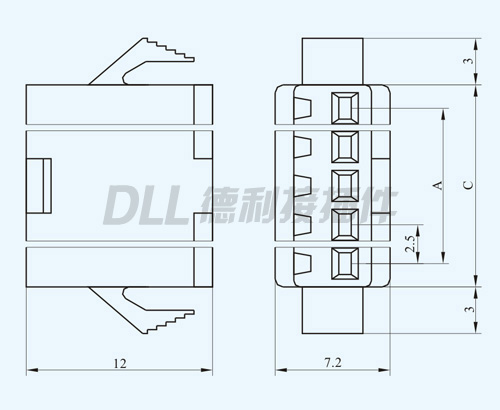

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | SM-2Y/SM-2R | 2.5 | 8.0 | 5.5 |
| 3 | SM-3Y/SM-3R | 5.0 | 10.5 | 8.0 |
| 4 | SM-4Y/SM-4R | 7.5 | 13.0 | 10.5 |
| 5 | SM-5Y/SM-5R | 10.0 | 15.5 | 13.0 |
| 6 | SM-6Y/SM-6R | 12.5 | 18.0 | 15.5 |
| 7 | SM-7Y/SM-7R | 15.0 | 20.5 | 18.0 |
| 8 | SM-8Y/SM-8R | 17.5 | 23.0 | 20.5 |
| 9 | SM-9Y/SM-9R | 20.0 | 25.5 | 23.0 |
| 10 | SM-10Y/SM-10R | 22.5 | 28.0 | 25.5 |
| 11 | SM-11Y/SM-11R | 25.0 | 30.5 | 28.0 |
| 12 | SM-12Y/SM-12R | 27.5 | 33.0 | 30.5 |

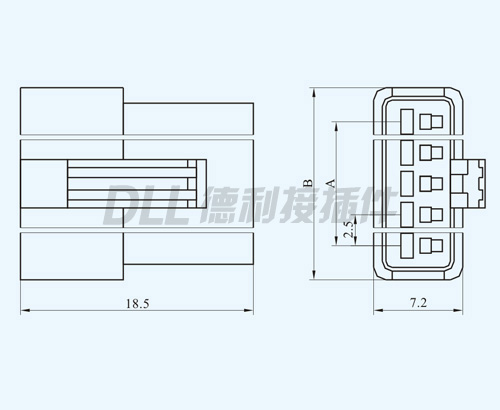

| 電路 | 類型 | 適用PC板厚度(mm) | |||||
| 0.5-0.9 | 1.0-1.5 | 1.5-2.0 | |||||
| A | B | A | B | A | B | ||
| 2 | SM-2Y | 5.7 | 9.6 | 5.7 | 9.8 | 5.7 | 10.0 |
| 3 | SM-3Y | 8.2 | 12.1 | 8.2 | 12.3 | 8.2 | 12.5 |
| 4 | SM-4Y | 10.7 | 14.6 | 10.7 | 14.8 | 10.7 | 15.0 |
| 5 | SM-5Y | 13.2 | 17.1 | 13.2 | 17.3 | 13.2 | 17.5 |
| 6 | SM-6Y | 15.7 | 19.6 | 15.7 | 19.8 | 15.7 | 20.0 |
| 7 | SM-7Y | 18.2 | 22.1 | 18.2 | 22.3 | 18.2 | 22.5 |
| 8 | SM-8Y | 20.7 | 24.6 | 20.7 | 24.8 | 20.7 | 25.0 |
| 9 | SM-9Y | 23.2 | 27.1 | 23.2 | 27.3 | 23.2 | 27.5 |
| 10 | SM-10Y | 25.7 | 29.6 | 25.7 | 29.8 | 25.7 | 30.0 |
| 11 | SM-11Y | 28.2 | 32.1 | 28.2 | 32.3 | 28.2 | 32.5 |
| 12 | SM-12Y | 30.7 | 34.6 | 30.7 | 34.8 | 30.7 | 35.0 |

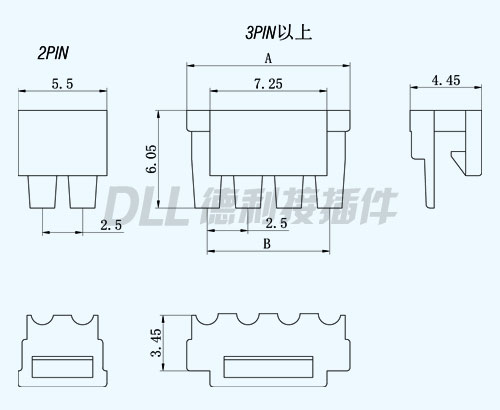

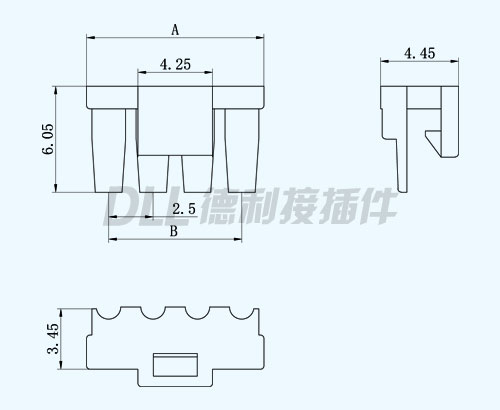

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | SM-2RS/SM-2YS | 5 | 2.5 |
| 3 | SM-3RS/SM-3YS | 7.5 | 5.0 |
| 4 | SM-4RS/SM-4YS | 10.0 | 7.5 |
| 5 | SM-5RS/SM-5YS | 12.5 | 10.0 |
| 6 | SM-6RS/SM-6YS | 15.0 | 12.5 |
| 7 | SM-7RS/SM-7YS | 17.5 | 15.0 |
| 8 | SM-8RS/SM-8YS | 20.0 | 17.5 |
| 9 | SM-9RS/SM-9YS | 22.5 | 20.0 |
| 10 | SM-10RS/SM-10YS | 25.0 | 22.5 |
