| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

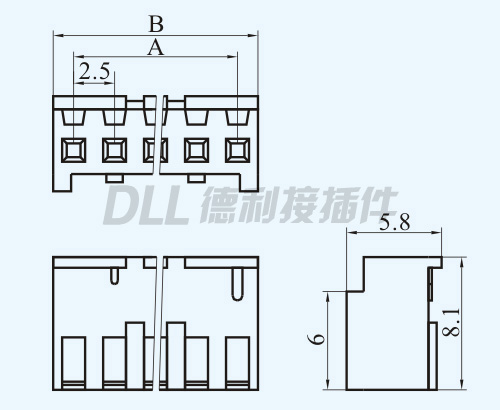

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | LP-2Y | 2.5 | 5.3 |
| 3 | LP-3Y | 5.0 | 7.8 |
| 4 | LP-4Y | 7.5 | 10.3 |
| 5 | LP-5Y | 10.0 | 12.8 |
| 6 | LP-6Y | 12.5 | 15.3 |
| 7 | LP-7Y | 15.0 | 17.8 |
| 8 | LP-8Y | 17.5 | 20.3 |
| 9 | LP-9Y | 20.0 | 22.8 |
| 10 | LP-10Y | 22.5 | 25.3 |
| 11 | LP-11Y | 25.0 | 27.8 |
| 12 | LP-12Y | 27.5 | 30.3 |
| 13 | LP-13Y | 30.0 | 32.8 |
| 14 | LP-14Y | 32.5 | 35.3 |
| 15 | LP-15Y | 35.0 | 37.8 |

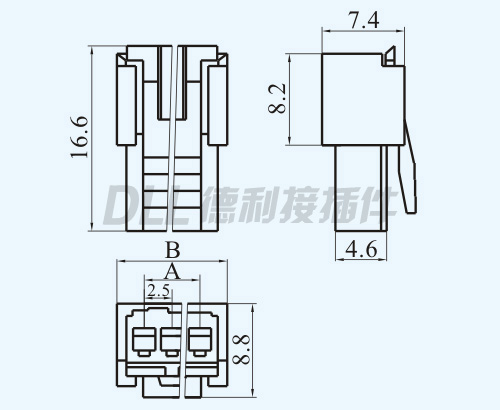

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | LP-2R | 2.5 | 7.5 |
| 3 | LP-3R | 5.0 | 10.5 |
| 4 | LP-4R | 7.5 | 12.5 |
| 5 | LP-5R | 10.5 | 15.0 |
| 6 | LP-6R | 12.5 | 17.5 |
| 7 | LP-7R | 15.0 | 20.0 |
| 8 | LP-8R | 17.5 | 22.5 |
| 9 | LP-9R | 20.0 | 25.0 |
| 10 | LP-10R | 22.5 | 27.5 |
| 11 | LP-11R | 25.0 | 30.0 |
| 12 | LP-12R | 27.5 | 32.5 |
| 13 | LP-13R | 30.0 | 35.0 |
| 14 | LP-14R | 32.5 | 37.5 |
| 15 | LP-15R | 35.0 | 40.0 |
