| 技術特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |

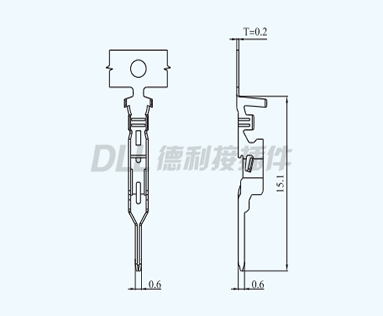

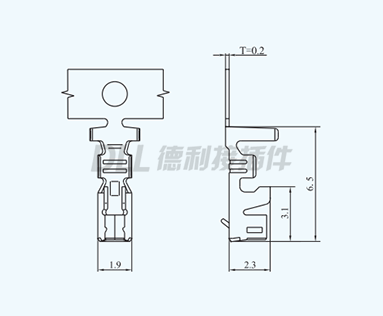

| 端子 | 磷青銅,鍍錫 |
|
鎖扣 |
尼龍UL94-V0(2) |
參考圖紙
Rosh
MSDS

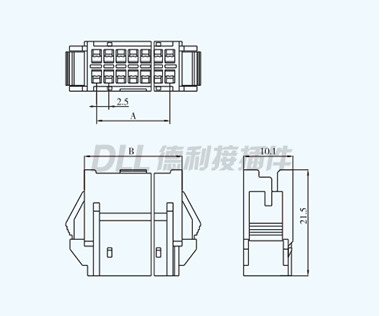

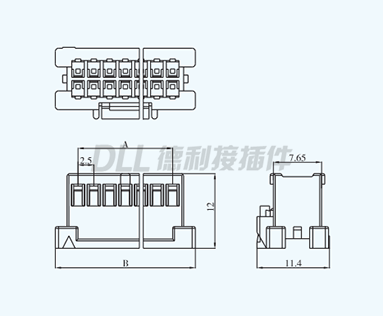

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2x2 |
XAD-4Y |
2.50 | 9.70 |
| 2x3 | XAD-6Y | 5.00 | 12.20 |
| 2x4 | XAD-8Y | 7.50 | 14.70 |
| 2x5 | XAD-10Y | 10.00 | 17.20 |
| 2x6 | XAD-12Y | 12.50 | 19.70 |
| 2x7 | XAD-14Y | 15.00 | 22.20 |
|
2x8 |
XAD-16Y | 17.50 | 24.70 |
| 2x9 | XAD-18Y | 20.00 | 27.20 |
| 2x10 | XAD-20Y | 22.50 | 29.70 |
| 2x11 | XAD-22Y | 25.00 | 32.20 |
| 2x12 | XAD-24Y | 27.50 | 34.70 |
| 2x13 | XAD-26Y | 30.00 | 37.20 |
| 2x14 | XAD-28Y | 32.50 | 39.70 |
| 2x15 | XAD-30Y | 35.00 | 42.20 |
| ~ |
~ |
~ | ~ |
|
2x20 |
XAD-40Y |
47.50 |
54.70 |

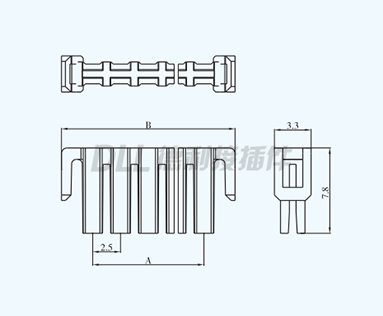

| 電路 | 類型 | 尺寸 | |
| A |
B |
||
| 2x2 |
XAD-4R |
2.50 | 7.50 |
| 2x3 |
XAD-6R |
5.00 | 10.00 |
| 2x4 |
XAD-8R |
7.50 | 12.50 |
| 2x5 |
XAD-10R |
10.00 | 15.00 |
| 2x6 |
XAD-12R |
12.50 | 17.50 |
| 2x7 |
XAD-14R |
15.00 | 20.00 |
| 2x8 |
XAD-16R |
17.50 | 22.50 |
| 2x9 |
XAD-18R |
20.00 | 25.00 |
| 2x10 |
XAD-20R |
22.50 | 27.50 |
|
2x11 |
XAD-22R |
25.00 | 30.00 |
| 2x12 |
XAD-24R |
27.50 | 32.50 |
| 2x13 |
XAD-26R |
30.00 | 35.00 |
| 2x14 |
XAD-28R |
32.50 | 37.50 |
| 2x15 |
XAD-30R |
35.00 | 40.00 |
| ~ |
~ |
~ | ~ |
|
2x20 |
XAD-40R |
47.50 |
52.50 |

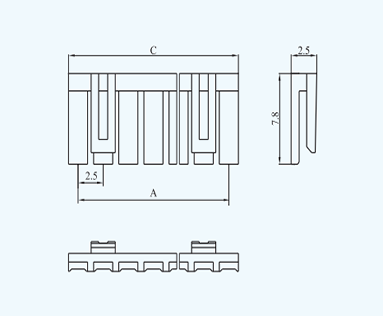

| 電路 | 類型 | 尺寸 | ||
| A |
B |
C | ||
| 2x2 |
XAD-4YS/XAD-4RS |
2.50 |
8.10 | 4.40 |
| 2x3 |
XAD-6YS/XAD-6RS |
5.00 | 10.60 | 6.90 |
| 2x4 |
XAD-8YS/XAD-8RS |
7.50 | 13.10 | 9.40 |
| 2x5 |
XAD-10YS/XAD-10RS |
10.00 | 15.60 | 11.90 |
| 2x6 |
XAD-12YS/XAD-12RS |
12.50 | 18.10 | 14.40 |
| 2x7 |
XAD-14YS/XAD-14RS |
15.00 | 20.60 | 16.90 |
| 2x8 |
XAD-16YS/XAD-16RS |
17.50 | 23.10 | 19.40 |
| 2x9 |
XAD-18YS/XAD-18RS |
20.00 | 25.60 | 21.90 |
| 2x10 |
XAD-20YS/XAD-20RS |
22.50 | 28.10 | 24.40 |
| 2x11 |
XAD-22YS/XAD-22RS |
25.00 |
30.60 | 26.90 |
| 2x12 |
XAD-24YS/XAD-24RS |
27.50 |
33.10 | 29.40 |
| 2x13 |
XAD-26YS/XAD-26RS |
30.00 | 35.60 | 31.90 |
| 2x14 |
XAD-28YS/XAD-28RS |
32.50 | 38.10 | 34.40 |
| 2x15 |
XAD-30YS/XAD-30RS |
35.00 | 40.60 | 36.90 |
| ~ |
~ |
~ |
~ | ~ |
|
2x20 |
XAD-40YS/XAD-40RS |
47.50 |
53.10 |
49.40 |
