| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 500M min |
| 耐壓 | 1500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |
|
鎖扣 |
尼龍UL94-V0(2) |

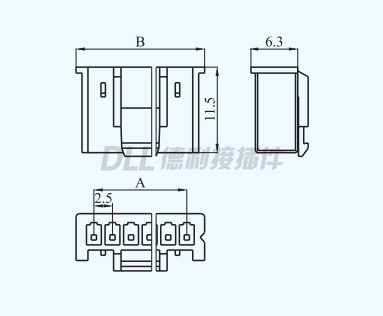

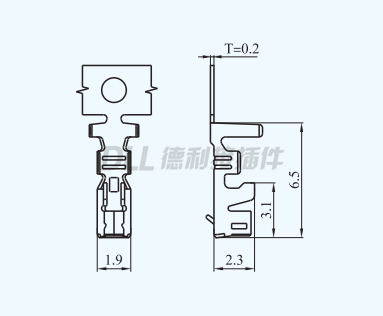

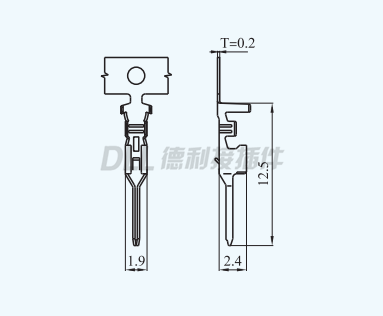

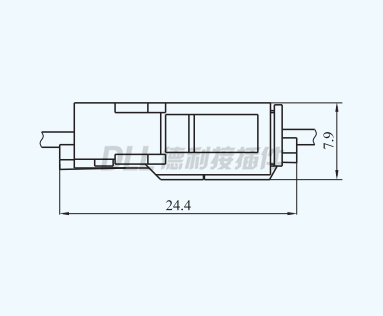

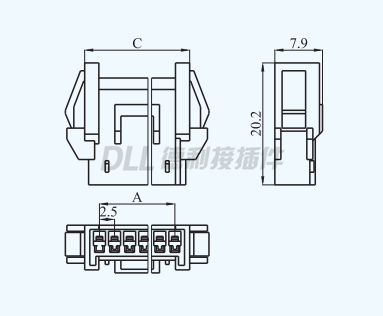

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | ||
| A |
B |
C | ||
| 2 |
XM-2Y/XM-2R |
2.50 |
8.80 | 8.90 |
| 3 |
XM-3Y/XM-3R |
5.00 | 11.30 | 11.40 |
| 4 |
XM-4Y/XM-4R |
7.50 | 13.80 | 13.90 |
| 5 |
XM-5Y/XM-5R |
10.00 | 16.30 | 16.40 |
| 6 |
XM-6Y/XM-6R |
12.50 | 18.80 | 18.90 |
| 7 |
XM-7Y/XM-7R |
15.00 | 21.30 | 21.40 |
| 8 |
XM-8Y/XM-8R |
17.50 | 23.80 | 23.90 |
| 9 |
XM-9Y/XM-9R |
20.00 | 26.30 | 26.40 |
| 10 |
XM-10Y/XM-10R |
22.50 | 28.80 | 28.90 |
| 11 |
XM-11Y/XM-11R |
25.00 |
31.30 | 31.40 |
| 12 |
XM-12Y/XM-12R |
27.50 | 33.80 | 33.90 |
| ~ |
~ |
~ |
~ | ~ |
|
15 |
XM-20Y/XM-20R |
35.00 |
41.30 |
41.40 |
| 電路 | 類型 | 尺寸(mm) | |
| A |
B |
||
| 2 |
XM-2S |
2.50 | 4.40 |
| 3 |
XM-3S |
5.00 | 6.90 |
| 4 |
XM-4S |
7.50 | 9.40 |
| 5 |
XM-5S |
10.00 | 11.90 |
| 6 |
XM-6S |
12.50 | 14.40 |
| 7 |
XM-7S |
15.00 | 16.90 |
| 8 |
XM-8S |
17.50 | 19.40 |
| 9 |
XM-9S |
20.00 | 21.90 |
| 10 |
XM-10S |
22.50 | 24.40 |
| 11 |
XM-11S |
25.00 | 26.90 |
| 12 |
XM-12S |
27.50 | 29.40 |
| ~ |
~ |
~ | ~ |
|
15 |
XM-20S |
35.00 |
36.90 |
